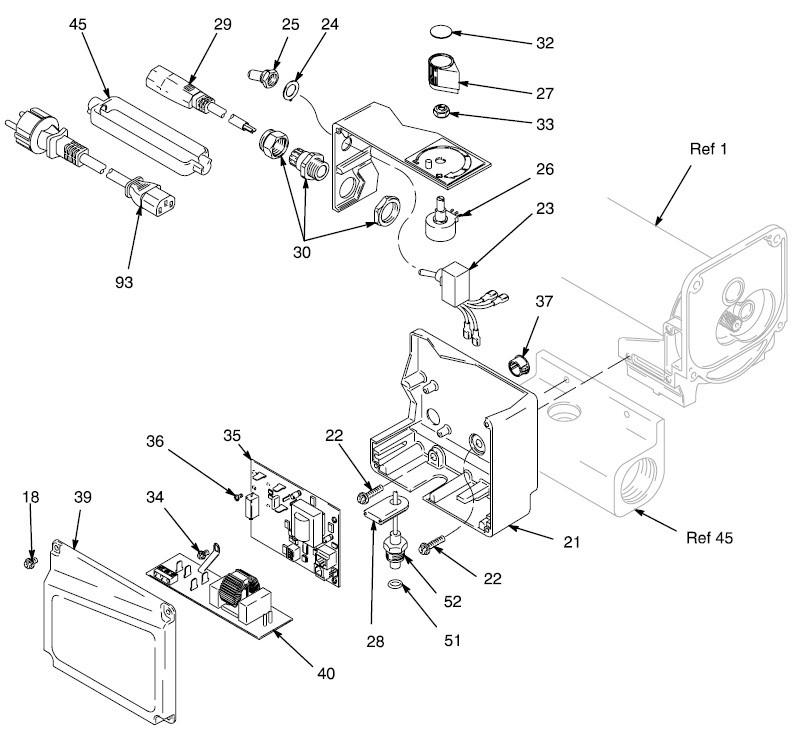

Graco 190ES Electric Airless Sprayer parts (232906, 220V)

Power Up Your Projects with Genuine Graco 190ES Electric Airless Sprayer Parts (232906, 220 V)

Graco 190ES earned the nickname “little giant” in the ’90s because it stuffed a 3 300 psi Endurance™ pump and industrial motor into a frame light enough for single-handed lifts. Many units still pull daily duty on 220-volt sites from Nairobi to New Delhi—but only if their rods, seats, filters, and boards stay factory-fresh. When that gear fails, hunting legacy parts becomes a scavenger hunt… unless you bookmark SprayersAndParts for all graco airless sprayer parts. Our site still carries every serialized nut, belt, and circuit board Graco produced for model 232906, along with modern upgrades—like RAC X LP low-pressure tips—that bolt straight on.

Why Choose Genuine 190ES Parts Over “Will-Fit” Copies?

• Chromex® Rods & MaxLife™ Seats — hardened to 64 Rc; reject the titanium-dioxide that chews generic stainless.
• V-Max Blue™ Packings — leather/UHMW hybrid seals self-lubricate from 40 °F dawn starts to 110 °F attics.
• SmartControl™ Pressure Board — holds fan width ±1 % from 300 psi varnish to 3 300 psi block filler; clone boards “hunt” & waste paint.
• RAC X LP Tips — 500 psi lower operating pressure means 18 % less overspray and 10 dB quieter rigs.
• Warranty Intact — Graco still honors Endurance™ coverage when serial-matched parts are installed—one clone coil voids it all.

Key Specs at a Glance

One 190ES Kit Saves Four Sprayers

Graco carried stroke length, rod diameter, and filter cores across its small-electric line for nearly a decade. Stocking a single 232906 kit keeps multiple moneymakers rolling:

• 190ES 110 V & 220 V Variants — identical wetted parts; only cordset differs.
• Magnum X5 Airless Paint Sprayer Parts — pumps, filters, RAC X guards bolt on; ProXChange door optional.
• Ultra 395 & 490 PC Pro — seats, balls, 60-mesh filters, and Contractor PC gun cartridges cross-fit.
• LineLazer 3400 Stripers — graco whip hose, graco gun filters, pressure sensor identical; perfect for municipal fleets.

Top-Moving 190ES Replacement Parts

1. 232906 Endurance™ Pump Lower — Chromex rod, V-Max packings, MaxLife seats, hydro-tested to 5 000 psi.
2. 17C487 ProConnect Upgrade Door — transforms 15-minute pump swaps into 60-second pit-stops.
3. Easy-Out™ Filter Trio — 30-mesh yellow (roof coat), 60-mesh black (latex), 100-mesh blue (enamel).
4. 240 794 BlueMax II 50 ft Hose — ¼″ ID, 3 300 psi dual-swivel; pairs with 3 ft whip for soffits.
5. 17G180 RAC X LP 517 Tip + Guard — sprays satin at 1 400 psi; OSHA readings show 3 dB noise drop.
6. Pump Armor™ 1 gal — rust inhibitor; mandatory for off-season storage.

Five Field-Proven Habits for a 1 000-Hour 190ES

• Warm Flush 100 °F — melts latex 30 % faster; BlueMax liner safe to 160 °F.
• TSL Wet-Cup Discipline — 5 drops each break; dry cups score rods.
• Retorque Packings After First Hour — leather seats as it hydrates.
• Rotate Hose Ends Weekly — balances liner wear; keeps SmartControl capacitance true.
• Mesh-to-Tip Rule — 30-mesh ≥ 0.025″; 60-mesh for 0.017–0.023″; 100-mesh for graco fine finish guns.

Frequently Asked Questions

Will pump 232906 work in my Magnum X5?

Yes—rod stroke identical; ProConnect door kit 17A226 recommended for 60-second swaps.

Max hose length with 0.021″ tip?

150 ft total: ⅜″ BlueMax first 100 ft, ¼″ whip last 50 ft; hold 2 900 psi.

Can I spray solvent enamel?

Packings solvent-rated; flush mineral spirits, store in Pump Armor™.

Ready to Trade Downtime for Billable Gallons?

Add an Endurance pump, Easy-Out filters, and LP tip bundle to your cart. We’ll ship —tomorrow your 190ES wakes up on the first trigger pull, sprays flat stripes, and banks early sign-offs.
