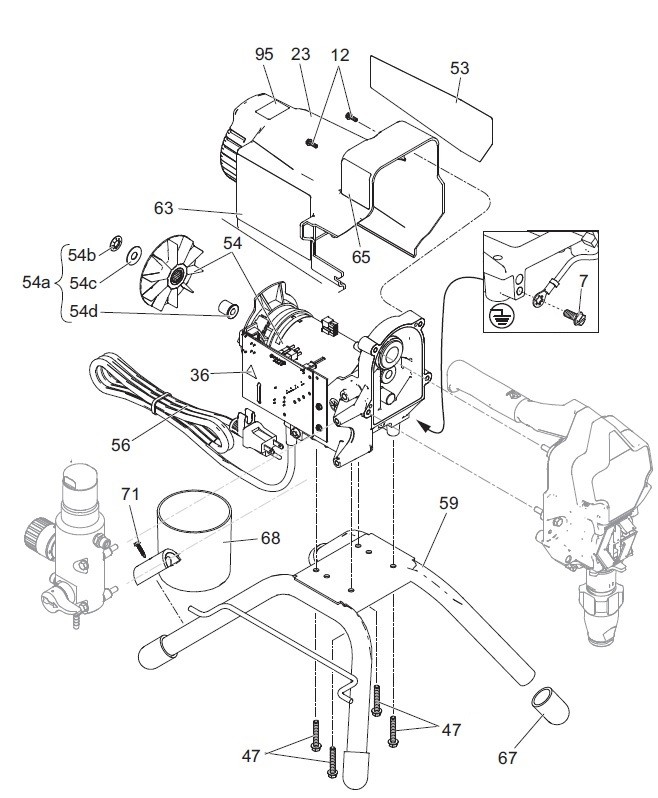

Graco 290 PC classic stand sprayer parts (I)

Graco 290 PC Classic Stand Sprayer Parts—Explore Our Full Line of Professional-Grade Graco 290 PC Classic Stand Sprayer Parts

Graco 290 PC Classic Stand rivals any “big rig” for reliability—without the bulk or price tag. Clocking in at 0.47 gpm (1.8 L min^-1) and 3 300 psi (227 bar), the 290 sprays drywall primer all morning, polyurethane enamel all afternoon, and still fits in a hatchback at quitting time. That productivity evaporates, though, when a 60-mesh Easy-Out™ filter clogs or a Chromex® rod scars. Seasoned contractors trust SprayersAndParts.com for serialized OEM graco sprayer parts. The moment a tip sputters or a board flashes E-03, productivity—and reputation—are on the line. Our live exploded diagram lets you zoom from the SmartControl® board to the tiny PTFE back-up ring.

Why Choose Genuine 290 PC Parts Over After-Market Look-Alikes?

• Chromex® precision. OEM rods wear a nickel-diffusion layer that outlasts flash-chrome clones two-to-one, keeping volumetric efficiency above 90 % past 800 hours.
• V-Max Blue™ packings stay supple at 120 °F. Budget leather seats harden fast, scar rods, and leak—multiplying downtime and mess.
• True 3 300 psi burst margin. Manifold blocks and BlueMax II hoses are hydro-tested to 4 950 psi; knock-offs often miss ASTM weld-penetration specs.
• SmartControl® accuracy ±1 %. Graco boards are pre-flashed; aftermarket boards hunt, surge, and overspray—costing in paint and rework.
• Lifetime Advantage Drive™ warranty intact. Mix in non-OEM gears and you void coverage—stay genuine, protect resale value.

Core Specs & Top-Mover Kits

Cross-Fit Compatibility—One Parts Bin, Many Rigs

Graco’s modular DNA means your 290 inventory solves problems across the fleet:

• 490 PC Pro. Shares Chromex rod, 60-mesh filter, RAC X guard, and board firmware—stock one kit for both pumps (handy when a tech grabs the wrong case).
• Ultra Max II 495 PC Pro. Same filter and rod; the 290 board re-flashes in under three minutes to run the 495 motor.
• Magnum X7 & LTS 17. Use identical guard + inlet strainer via adapter—see Graco X7 and LTS 17 Diagram and Parts for thread callouts.
• Project Painter Plus. Shares Graco tip guard & gun filter; stash spare magnum project painter plus parts right next to 290 seals.
• Fine-Finish HVLP. LP tips keep fan geometry identical, letting trim crews touch-up HVLP cabinets without sheen halos—ideal for a graco fine finish sprayer fleet.

Smart Accessory Bundles That Pay for Themselves

1. Endurance™ Pump Lower. Pre-primed replacement swaps in 60 s—no bench vise, just two pins.
2. BlueMax II Hose Kit. 50 ft × ¼ in main + 3 ft whip cut pulsation, adding 20 % seal life.
3. RAC X LP & FFLP Tip Trio. Twelve patterns slash overspray 50 % and reduce amp-draw—great for generator nights.
4. Pump Armor® Winter Pack. Anti-rust fluid, cam-lock plug—wake up spring-ready.

Five Habits for 1 000-Hour Pumps

1 — Log gallons & hours. Swap packings every 750 gal latex / 400 gal solvent.
2 — Flush warm. 40 °C water dissolves acrylic twice as fast; half-pressure back-flush keeps grit out of the transducer.
3 — TSL™ every break. Two drops keep Chromex rods mirror-bright.
4 — Monthly torque. Crankcase bolts 20 N·m; loose bolts hammer gears.
5 — Stock redundancy. One $70 filter + $200 pump kit beats a $4 000 delay.

Add to Cart—Get Back to Spraying

Open the live parts list, tick your pump kit, filter, rod and guard, then smash Add to Cart. One freight fee, one tracking link, one bullet-proof fix—see you on tomorrow’s jobsite.
