Unlock Maximum Uptime with Quality Graco Ultra 695 XT Series Electric Airless Sprayers Spares
Graco Ultra 695 XT is the sweet spot between lightweight portability and true commercial flow—laying down up to 0.95 gpm with 3 300 psi still on tap. But even this mid-electric hero stalls the second a Chromex® rod scores or a SmartControl™ sensor drifts. That’s why pros who bid tight schedules grab serialized, bench-tested parts from SprayersAndParts.com.
Why Choose Genuine Ultra 695 XT Parts Over “Will-Fit” Copies?
- Chromex® Rod + MaxLife™ Seats – 64 Rc nitrided steel shrugs off TiO2 pigment that gouges stainless knock-offs in one weekend.
- V-Max Blue™ Packings – UHMW/leather stack self-lubricates from 40 °F dawn starts to 110 °F attics without weep-by downtime.
- SmartControl™ 4.0 Board – OEM pressure transducer keeps fan width ±1 %; clone boards “hunt” and waste 10 % more paint in overspray.
- ProConnect™ 2 Door – swap a blown lower in 60 s—no messy bench-vise ballet.
- Warranty Intact – Graco honours Endurance™/motor cover only when every replacement carries a factory serial. One clone seat voids it all.
Key Technical Specs at a Glance
| Metric |
Specification |
| Max working pressure |
3 300 psi / 228 bar |
| Max flow |
0.95 gpm / 3.6 L min |
| Motor |
1.6 hp brushless DC • Advantage-Drive™ gears |
| Pump swap time |
< 60 s via ProConnect 2 |
| Recommended tip range |
RAC X LP 0.015″–0.029″ • WideRAC 0.033″ texture |
One Parts Bin, Multiple Machines Saved
Graco engineered shared stroke geometry and filter cores across its mid-electric family, so a single 695 XT kit rescues spare-rigs when the unexpected hits:

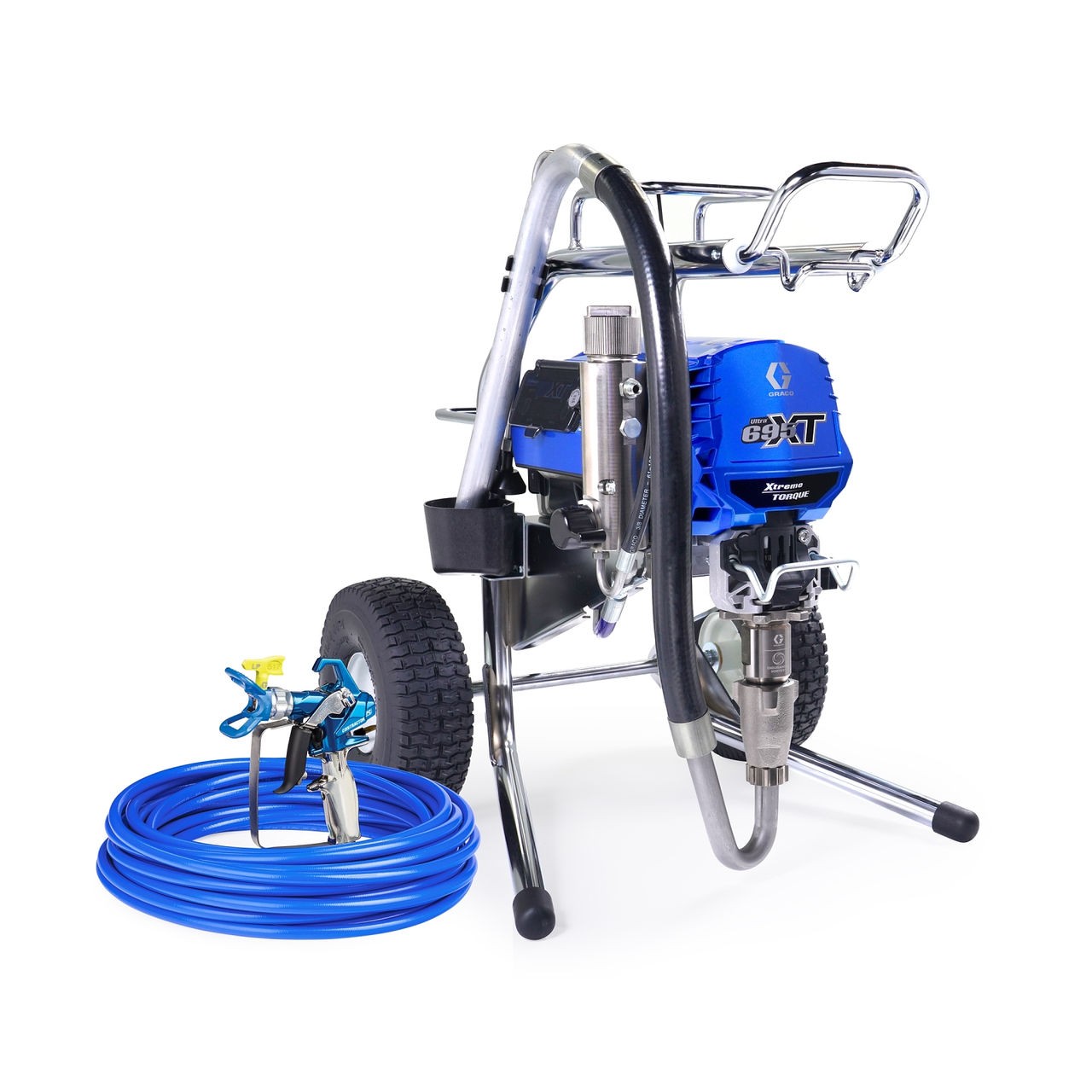

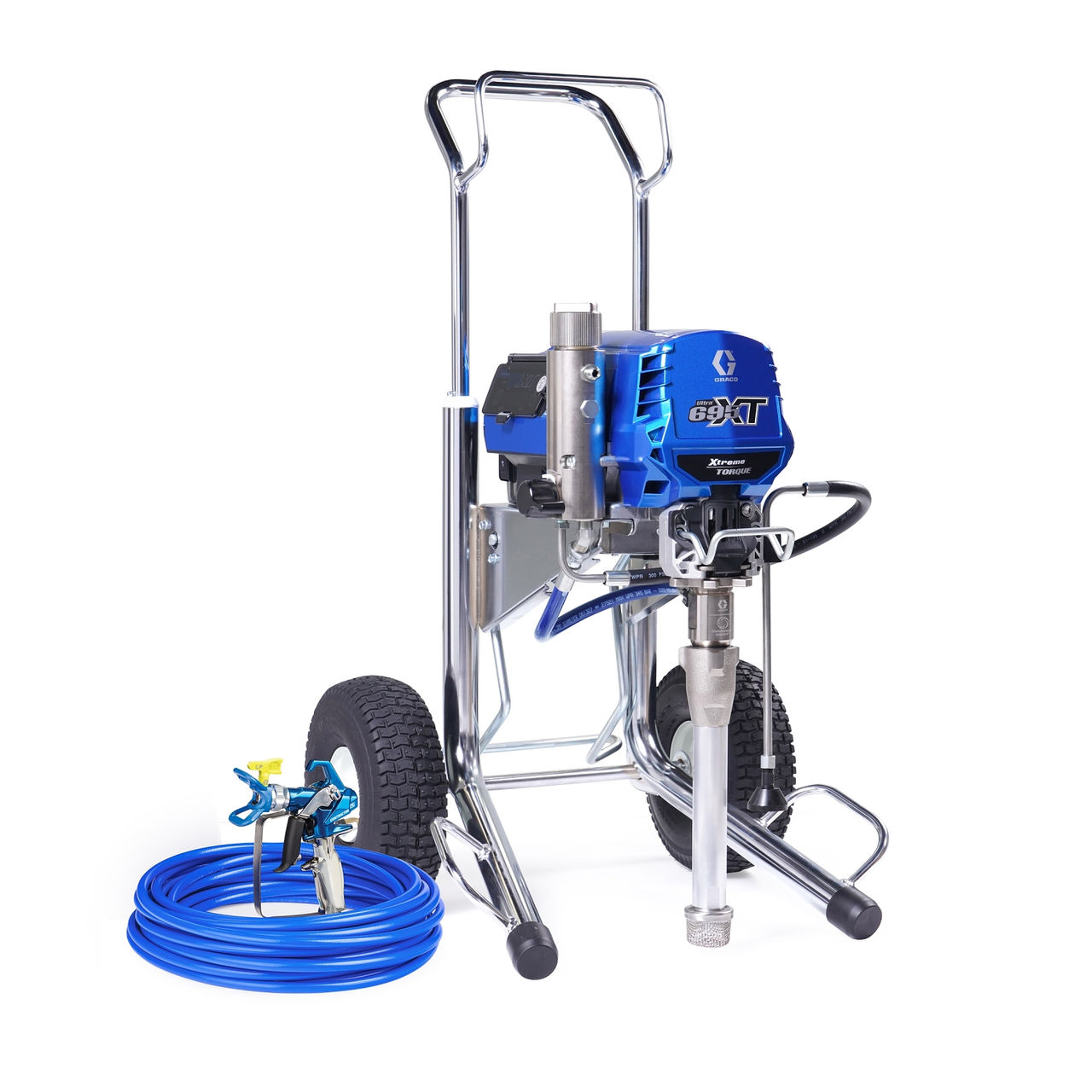

- Ultra 695 XT Lo-Boy & Hi-Boy – native fit.
- Ultra Max II 695 / 795 – identical seats, balls, and Easy-Out™ filters.
- Graco GMAX 5900 Gas Rig – Endurance lower, RAC X tips, and 60-mesh filters cross-fit for weekend asphalt-sealer jobs.
- 395 PC & 490 PC Pro – Contractor PC gun cartridge, RAC X guard, and 60-mesh filters bolt on during pinch-hit repaint shifts.
- Graco TrueCoat 360 Handheld – LP tips & guards ensure touch-up blends match main-gun sheen.
Top-Moving Ultra 695 XT Parts
- 17C487 Endurance™ Pump Lower – Chromex rod, V-Max packings, MaxLife seats; hydro-tested at 5 000 psi.
- 17Y297 Contractor PC Gun – 30-second cartridge swap; pairs with any graco paint sprayer guard.
- 240 794 BlueMax II 50-ft Hose – ¼″ ID dual-swivel; pair with 3-ft graco whip hose for soffits and stairwells.
- 17G180 RAC X LP 517 Tip + Guard – lays satin at 1 400 psi; reduces overspray up to 18 %.
- Easy-Out™ Filter 3-Pack – 30-mesh yellow (roof coat), 60-mesh black (latex), 100-mesh blue (enamel) for perfect mesh-to-tip parity.
- Pump Armor™ 1 gal – rust inhibitor that keeps leather packings supple over winter.
Five Habits for a 1 000-Hour Ultra 695 XT
- Warm Flush 100 °F—latex dissolves 30 % faster; BlueMax liner OK to 160 °F.
- Wet-Cup Discipline—five TSL drops per break; dry cups score Chromex rods by lunch.
- Belt Retension After First Hour—Advantage-Drive gears settle warm; reset to ½″ deflection.
- Mesh-to-Tip Rule—30-mesh for ≥0.025″, 60-mesh 0.017–0.023″, 100-mesh for graco truecoat 360 replacement parts enamel touch-ups.
- Colour-Code Bins—blue = electric rigs, red = gas, green = handheld; no wrong-kit grabs when crews rotate.
Frequently Asked Questions
Will Endurance pump 17C487 fit my 395 sprayer?
Yes—stroke identical; add ProConnect 2 door 17A226 for 60-s swaps.
Max hose length with 0.027″ tip?
175 ft total: ⅜″ BlueMax first 125 ft, ¼″ whip last 50 ft; hold 2 900 psi at gun.
Can I spray solvent urethane?
Packings solvent-rated; flush xylene then store in Pump Armor™.
Ready to Turn Downtime into Billable Gallons?
Add an Endurance pump, Easy-Out filter set, and LP tip bundle to your cart now. We’ll ship —so tomorrow your Ultra 695 XT wakes on first trigger, sprays razor-flat lines, and keeps invoices flowing.
Shop Ultra 695 XT Parts →
