Graco Ultra Mark V XT Standard – Full Power Cord Airless Sprayer Parts List

For professional painters and contractors searching for reliable, durable Graco airless paint sprayer components, the Graco Ultra Mark V XT Standard series offers a comprehensive factory-approved parts list. Whether you're seeking airless paint sprayer attachments, Graco pump repair kits, Graco spray tips, or simply the full blow, the following guide provides detailed part numbers, maintenance insights, and expert advice to keep your equipment in top performance.

1. Overview of Electric Airless Sprayer Parts

The Mark V XT Standard is part of Graco’s professional-grade lineup featuring electric-powered, 3,300 psi airless pump systems. These systems rely on a range of critical components: power cords, motor assemblies, fluid hoses, pump rods, spray tips, and more. Understanding these parts ensures you can perform timely pump repairs, install the right attachments, and maintain peak spray performance.

2. Power Cord & Control Box Components

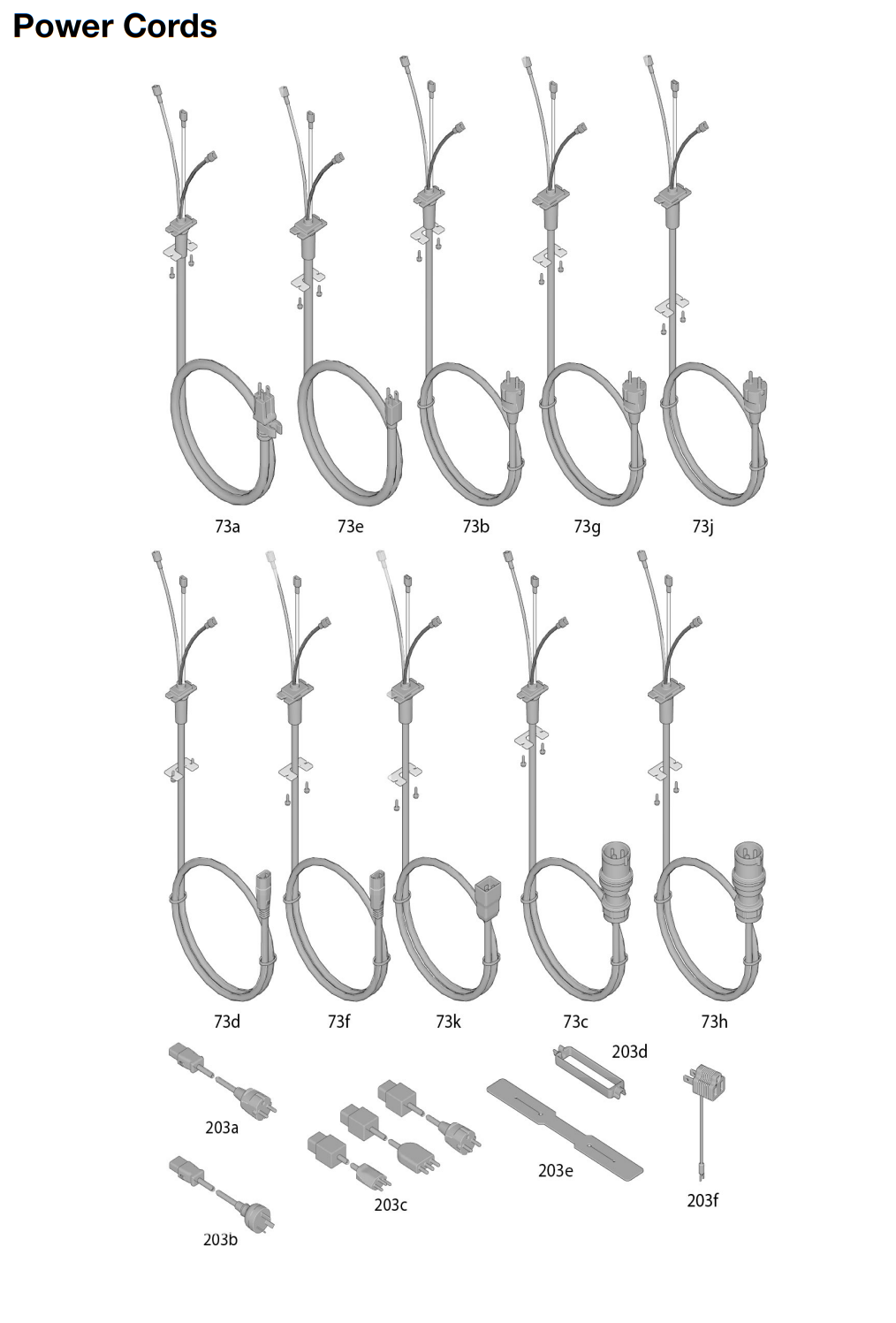

• Power Cord (Part #15E355) – The power cord is essential for safe, reliable operation. Ensure the cord matches your voltage rating (120 V or 230 V) and includes strain relief and grommet parts to avoid wear and tear. Damaged cords lead to downtime—order a replacement at the first sign of fraying.

• Control Box & Electrical Components – Inside the control box, you’ll find the ON/OFF rocker switch, potentiometer dial (for pressure adjustment), pressure transducer, and wiring harness. Graco offers full replacement kits for control board components, gaskets, and strain relief bushings.

3. Pump & Power End Assemblies

• Pump Displacement Unit – This is the heart of the sprayer. Rebuild or replace individual parts such as packing glands, seals, pistons, and valves with Graco’s pump repair kits.

• Power End – Includes motor, pump rod, connecting rod, housings, gears, drive plate, and rod shield. Most issues stem from worn gears or seals; fortunately, Graco provides Graco pump repair kits that include all necessary bearings, seals, washers, and rods.

4. Hoses, Whips & Suction Systems

Your sprayer depends on a network of hoses and whips for fluid flow:

• Suction Hose – Typically a 3/8″ hose connecting the material supply to the pump inlet. Kits include O-rings and clamps to maintain a sealed system.

• Drain & Return Lines – Drain hose assemblies ensure solvent flushing and store fluid during standby. Replacement hoses prevent clogs and leakage.

5. Spray Gun, Tips & Attachments

Nozzle performance relies heavily on the correct attachments:

• Sprayer Gun Assembly – The standard Graco spray gun connects via 1/4″ fittings. Options include standard RAC X spray tips, RAC X LP (low-pressure) tips, and ProContractor gun kits.

• Graco Spray Tips – Choose reversible RAC X tips (e.g., 515, 517, 519 series) for durability and precision. For finer finishes, Graco offers low-pressure RAC X LP tips. High-quality tips ensure uniform spray patterns and reduce overspray.

• Attachments & Guards – Protect the tip with RAC X Tip Guards and attach quick-clean tools like QuickShot auto-clean rods and gun filters (30–200 mesh). These airless paint sprayer attachments are indispensable for maintenance and operator safety.

6. Filters & Fluid Management

• Inlet & Gun Filters – Mesh filters prevent debris from entering the pump and clogging the tip. Choose coarse inlet filters (60/100 mesh) and finer gun filters (100/200 mesh). Graco also offers quick-clean, TwistSeal designs for easier maintenance.

• Deflectors & Cup Kits – Rear deflectors reduce overspray towards the operator, and drain cups help manage fluid spills during shut-down.

7. Cart & Frame Hardware

The rugged frame includes pneumatic wheels, legs, handles, and drain hardware. Order replacement items like:

• Wheels and pneumatic tires

• Drain brackets and cups

• Frame nuts, bolts, clips, mounts

This hardware keeps the sprayer mobile and attack-ready.

8. Spare Parts Lists – Detailed by Section

Pump Section

• Packing glands, piston sleeves, seals

• Valve seats, intake/discharge valves

• Rods, O-rings, springs

Power End

• Gears, housing bearings, connecting rods

• Shields, deflectors, drive plates, fan

Electrical Setup

• Control boards, power bars, gaskets

• Pressure transducer, potentiometer knob

• Power cord set, strain relief kit

Fluid Accessories

• Inlet strainer, suction hose kits

• Gun filters, quick disconnect whips

• RAC X spray tips & tip guard attachments

• Hose assemblies (1/4", 3/8", 1/2" fluid lines)

9. Choosing the Right Parts for Maintenance

• Graco Pump Repair Kits – These kits (e.g., QuikPak) include everything needed to rebuild a worn pump, reducing downtime compared to buying individual parts.

• Graco Spray Tips – Choose tip sizes based on coating type and desired finish; reversible tips allow you to clear clogs without removal.

• Airless Paint Sprayer Attachments – Include accessories like automated cleaning rods, hose whips, quick disconnects, and tip guards for optimized workflow.

10. Service & Repair – Finding “Graco pump repair near me”

For professional rebuilding, many certified distributors and service centers across North America offer authorized pump repair services. Locate your local specialist by:

1. Searching term “Graco pump repair near me” online

2. Visiting Graco’s official website and using their service locator tool

3. Checking with authorized sprayersandparts.com resellers for in-stock parts and same-day shipping

This ensures your pump rebuild is supported by OEM parts and warranties.

SEO Summary & Flow

• Emphasized Graco airless paint sprayer, airless paint sprayer attachments, Graco pump repair kits, Graco spray tips, Graco parts list, and Graco pump repair near me throughout.

• Structured content into clear, searchable sections (Power, Pump, Gun, Hoses, Filters, Service).

• Natural language and real-world usage make it accessible and user-friendly.

Example User Flow

1. Identify Trouble Area – Determine if the issue lies in electrical, fluid, or pressure control systems.

2. Select Correct Part from List – Rely on section breakdowns to find part numbers.

3. Use Attachment Guidance – If upgrading finish, choose proper spray tip/attachment kit.

4. Decide Repair Path – DIY with a Graco pump repair kit, or locate local service using Graco pump repair near me.

5. Maintain Fluid Flow – Install new hoses/filters to ensure clean paint delivery.

Why This Matters

Keeping your Graco airless paint sprayer in top shape requires a grasp of its parts—from hoses to spray tips. This optimized parts list ensures you have the reference needed to:

• Order exact OEM replacements

• Rebuild worn pumps efficiently

• Choose accessories that maintain finish quality

• Source local support under Graco pump repair near me searches

Protect your investment, boost spray efficiency, and avoid delays by using this enhanced Graco parts list.
