Graco 1065037A Hex Drive Shaft Assembly
Graco 1065037A Hex Drive Shaft Assembly Sales Kit (SPS10)
The Graco 1065037A Sales Kit is an OEM hex drive shaft assembly designed for Graco SPS10 surface preparation equipment. This replacement kit restores proper torque transfer between the motor and working head, helping maintain smooth and reliable operation during edging and surface prep applications.
Fits
- Graco SPS10 Surface Preparation System
- Graco SPS10 Edger
- Graco SPS10 Surface Prep Machine
Graco 1065037A Hex Drive Shaft Assembly Sales Kit for SPS10 Surface Preparation Equipment
The Graco 1065037A Sales Kit is a genuine OEM replacement designed to restore the hex drive shaft assembly used in Graco SPS10 surface preparation systems. The drive shaft plays a crucial role in transferring rotational power from the motor and gearbox to the working head or edging attachment.
When the drive shaft becomes worn, bent, or stripped, the machine may experience loss of power transfer, vibration, or inconsistent operation. Installing the 1065037A drive shaft kit helps restore smooth performance and ensures the equipment continues operating efficiently on demanding jobsite applications.

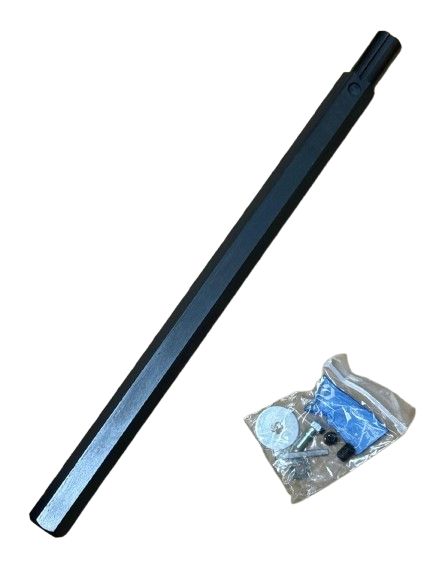

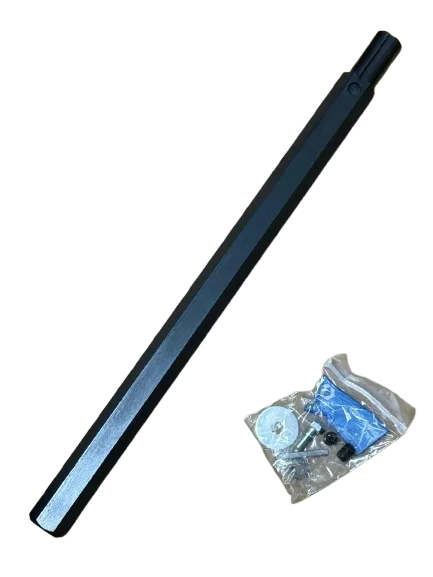

Kit Components
The Graco 1065037A Sales Kit includes the main drive shaft and installation hardware required for proper assembly.
| Component | Description |
|---|---|
| 17W039 | Hex Drive Shaft |
| SHSS .375-24 x .5 | Socket Head Set Screws (Qty 2) |
| 10115 | Drive Fastener |
| SLW .312 | Lock Washer |
| HX-CS .312-2 | Hex Cap Screw |
Why the Hex Drive Shaft Matters
The drive shaft is responsible for transmitting torque from the machine’s drive system to the surface preparation attachment. A properly functioning shaft ensures the machine maintains stable rotation, allowing contractors to achieve consistent surface results.
- Transfers rotational power from motor to attachment
- Maintains alignment of the drive system
- Supports stable rotation during operation
- Prevents slippage in high-load applications
Signs the Drive Shaft May Need Replacement
Surface preparation equipment operates under heavy load conditions. Over time, drive system components can wear down. Common indicators that the shaft should be replaced include:
- Loss of rotational drive during operation
- Grinding noises within the drive system
- Excessive vibration from the working head
- Visible wear or rounding of the hex shaft surfaces
Compatibility
| Machine Model | Equipment Type |
|---|---|
| Graco SPS10 Surface Preparation System | Surface Prep Equipment |
| Graco SPS10 Edger | Edging / Surface Preparation |
| Graco SPS10 Surface Prep Machine | Concrete Surface Preparation |
Cross-Reference Parts
The 1065037A sales kit includes several hardware components commonly referenced in SPS10 drive assemblies.
| Part Number | Description |
|---|---|
| 17W039 | Hex Drive Shaft |
| SHSS .375-24 x .5 | Socket Head Set Screw |
| 10115 | Drive System Fastener |
| SLW .312 | Lock Washer |
| HX-CS .312-2 | Hex Cap Screw |
Why Contractors Choose OEM Graco Parts
- Precision manufacturing and fit
- Guaranteed compatibility with SPS10 equipment
- Durable materials designed for industrial use
- Maintains manufacturer performance standards
