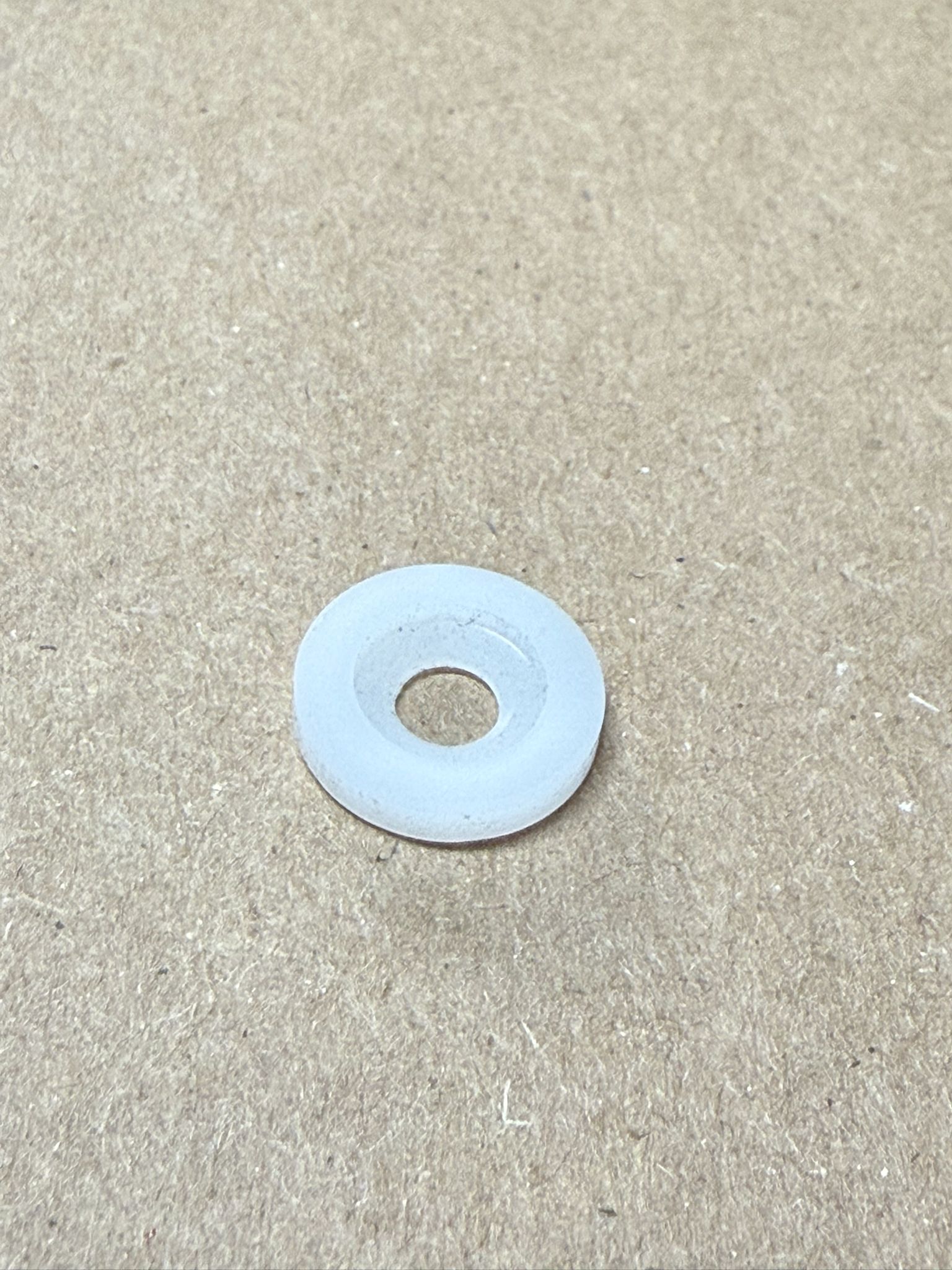

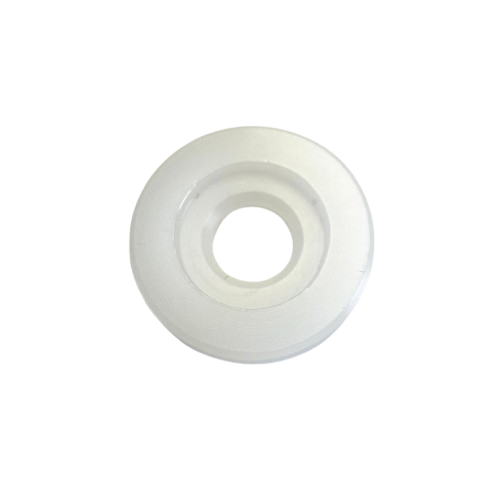

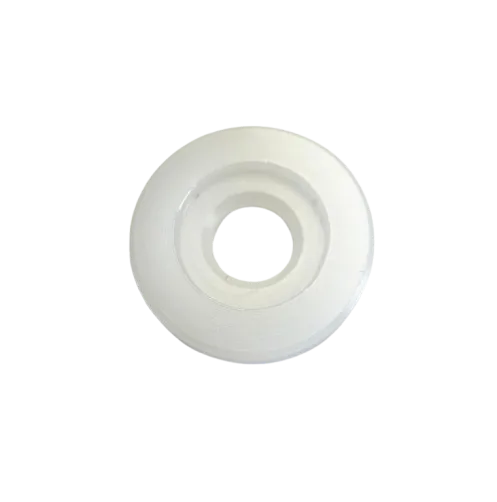

Graco 16F323 Internal Mix Check Valve Seat

GRACO 16F323 Seat Check Valve (Internal Mix) is a precision OEM component designed to maintain proper fluid control and prevent backflow in internal mix spray systems.

  • Brand: Graco
  • Type: Seat Check Valve (Internal Mix)
  • Application: Plural component spray systems & internal mix guns
  • Fit: Compatible with internal mix valve assemblies
  • Material: Hardened stainless steel construction

$10.5
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Compatible Machines / Systems

  • Graco Internal Mix Spray Guns
  • Graco Reactor Plural Component Systems
  • Fusion PC Spray Equipment
  • Mechanical Mix Spray Assemblies

Product Overview

GRACO 16F323 Seat Check Valve Int Mix is a critical internal component designed to ensure proper sealing and fluid control within internal mix spray systems. It helps prevent backflow and maintains accurate mixing ratios in plural-component applications. Manufactured with precision engineering, this OEM part restores system efficiency and ensures consistent spray performance in demanding environments.

Manufacturer Graco
Model Number 16F323
Type Seat Check Valve (Internal Mix)
Center Section Material Stainless Steel
Port Size Standard Internal Fit
Air Inlet Not Applicable
Wetted Material Stainless Steel
Compatible Media Coatings, Polyurea, Epoxy Materials

Key Features

  • Prevents fluid backflow and maintains system pressure
  • Ensures accurate mixing ratios in internal mix systems
  • Durable stainless steel construction for long service life
  • OEM precision fit for reliable sealing performance

Installation & Usage Tips

  • Always depressurize the system before replacing the valve seat
  • Inspect surrounding components like balls and springs during installation
  • Ensure proper alignment to avoid leakage or performance issues
  • Use genuine replacement parts for optimal efficiency

Frequently Asked Questions

The seat check valve acts as a sealing component that prevents fluid from flowing backward in the system. It ensures consistent pressure and helps maintain proper mixing ratios. This is especially important in plural-component spray systems where precision is critical.

You should replace the seat when you notice pressure loss, leakage, or inconsistent spray performance. Worn or damaged seats can cause improper sealing and lead to poor mixing results. Regular inspection helps avoid downtime.

Yes, the GRACO 16F323 seat is used across various internal mix systems and plural-component equipment. It is designed as an OEM part to fit perfectly within compatible assemblies. Always confirm compatibility with your specific model.

This valve is suitable for handling coatings, epoxy, and polyurea materials. Its stainless steel construction resists wear and chemical exposure. It ensures durability even in high-pressure and demanding applications.
