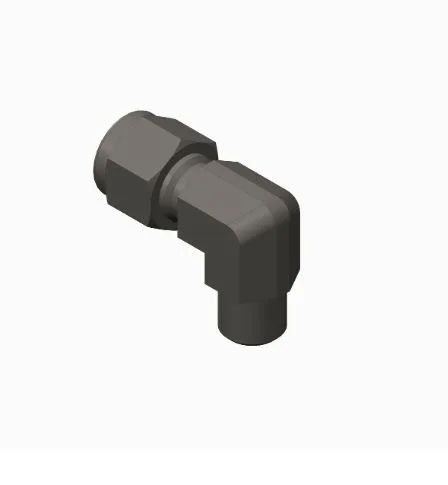

Graco 20306-00 Fitting, Elbow, 1/8Nptm X 1/4Tube Ss

90° stainless steel elbow fitting designed to connect 1/8" NPT male ports to 1/4" tubing, enabling compact and secure fluid routing in Graco spray systems.

  • Part No: 20306-00
  • 1/8" NPT male to 1/4" tube connection
  • 90° design for tight-space installation
  • Stainless steel construction for durability and corrosion resistance

$184.42
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Angled Tube-to-Thread Fluid Line Connection Fitting

Compatible Machines

  • Select Graco spray and fluid systems using 1/8 NPT male to 1/4" tube stainless steel elbow fittings
  • Industrial airless and air-assisted equipment requiring compact elbow tube connectors
  • Graco assemblies where stainless steel elbow fitting 20306-00 is specified in service documentation

Graco 20306-00 Fitting, Elbow, 1/8Nptm X 1/4Tube Ss provides a compact 90° stainless steel connection between threaded ports and tube lines, enabling secure fluid routing and reliable performance in Graco spray systems.

Key Function

  • Connects 1/8" NPT male ports to 1/4" tubing lines
  • Enables 90° directional fluid routing in tight spaces
  • Stainless steel construction for corrosion resistance and durability

Frequently Asked Questions

It connects threaded ports to tubing lines at a 90-degree angle, allowing efficient fluid routing in compact spaces.

Stainless steel provides corrosion resistance and durability, making it suitable for high-pressure and industrial fluid systems.

Yes, it is designed for use in Graco industrial spray systems where secure, high-pressure fluid connections are required.
