Graco 241105 Swivel Wheel/Cable Kit
Graco 241105 Swivel Wheel/Cable Kit is the "Swivel Wheel Parts Kits" for Line Lazer models (3500, 5000, 3900, 5900, 200HS, 200DC, ES 1000, ES 2000, 200 MMA) are designed to enhance the functionality and maneuverability of these line striping machines.
Here are some key features and components:
-
Caster Assembly: Includes swivel caster wheels for improved movement and precision.
-
Cable Adjustment Mechanism: Ensures proper alignment and functionality of the swivel wheels.
-
Durable Construction: Made with high-quality materials for longevity and reliability.
-
Compatibility: Specifically tailored for the mentioned Line Lazer models.

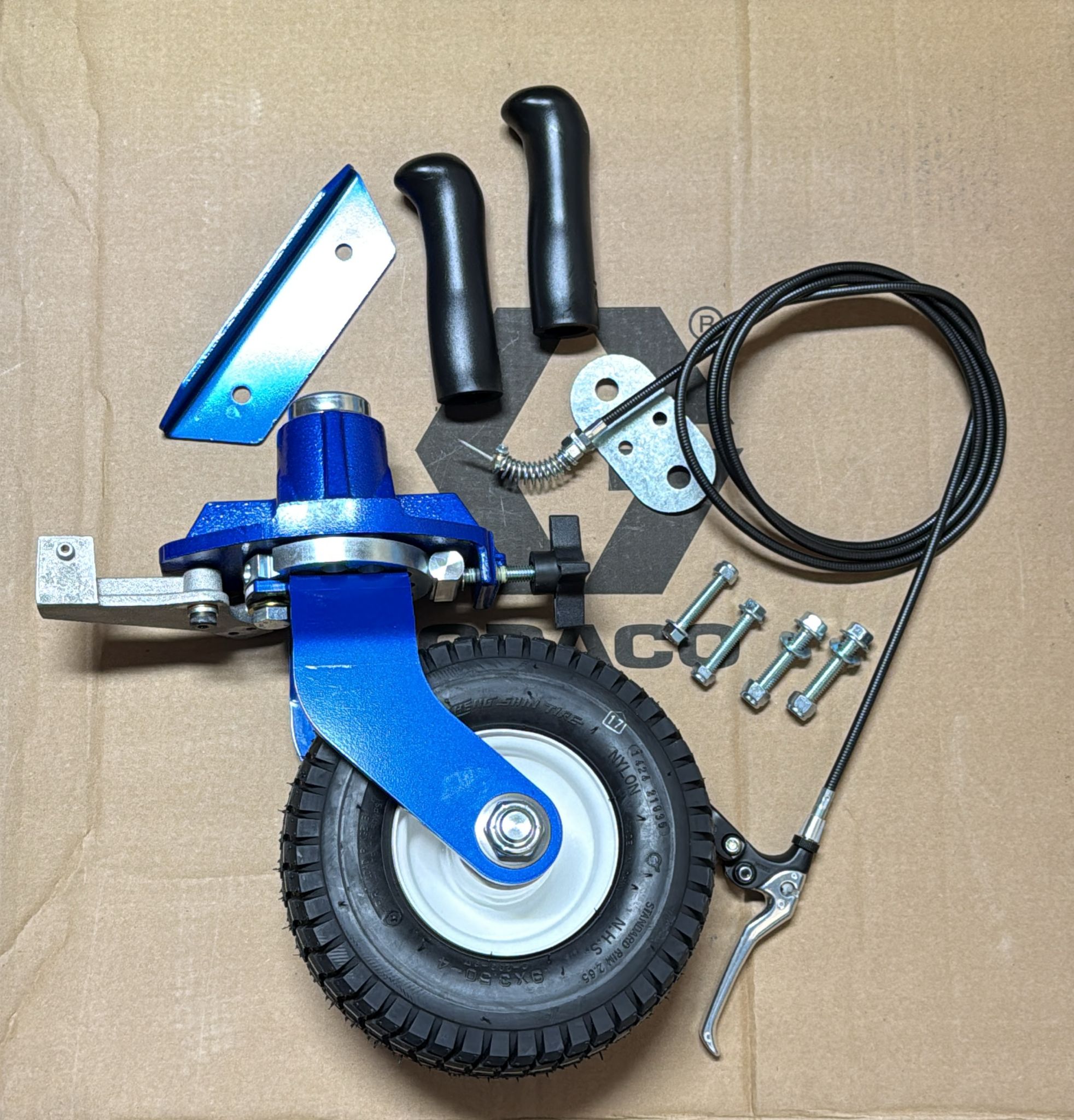

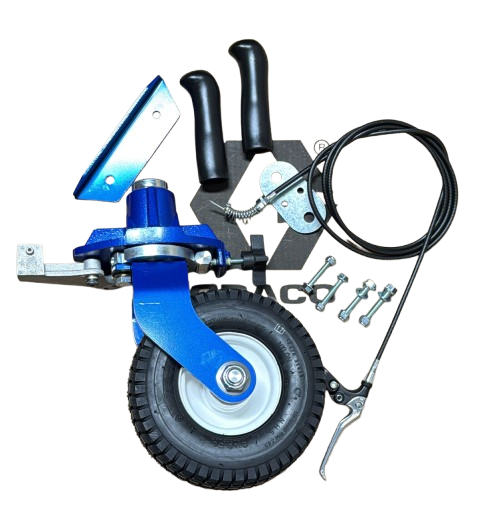

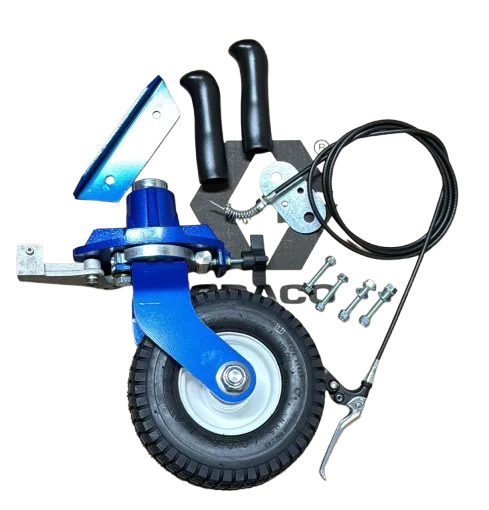

Please see the image for a list of all items in the kit.
Graco 241105 Swivel Wheel Assembly Kit Includes the Following Components:
Swivel Caster Assembly:
-
1× 240719 – Caster Assembly, Swivel
-
1× 240940 – Bracket, Hub
-
1× 17H485 – Shaft, Fork
-
1× 193528 – Arm, Detent
-
1× 193662 – Locking Pin, Tapered
-
2× 110754 – Cap Screw, Socket Head
-
1× 181818 – Pronged Knob
-
2× 114548 – Bronze Bearing
-
1× 113484 – Grease Seal
-
2× 113485 – Bearing, Cup/Cone
-
1× 112825 – Belleville Spring
-
1× 112405 – Lock Nut
-
1× 114648 – Dust Cap
-
1× 15J603 – Plain Washer
-
1× 113962 – Hardened Washer
-
1× 114681 – Hex Head Cap Screw
-
1× 17H486 – Adjuster Disk
-
1× 193661 – Jaw
-
1× 108483 – Shoulder Screw, Socket Head
-
1× 120476 – Bolt
Additional Components Included in the Complete 241105 Kit Assembly:
-
1× 113471 – Hex Head Cap Screw
-
1× 112405 – Lock Nut
-
1× 112825 – Belleville Spring
-
2× 193658 – Seal Spacer
-
1× 114549 – Pneumatic Wheel
-
1× 114802 – Wire Stop
-
1× 114682 – Compression Spring
-
1× 194310 – Actuator Lever
-
1× 241445 – Cable
-
1× 15F910 – Cable Bracket
-
1× 240991 – Front Caster Bracket
-
2× 114982 – Flanged Cap Screw
-
2× 101566 – Lock Nut
-
2× 112960 – Hex Flanged Screw
-
2× 111040 – Nylock Lock Nut
-
2× 114659 – Handle Grip
-
2× 100731 – Washer
