Air-operated fluid pressure regulator engineered to maintain consistent downstream pressure in high-pressure dispensing, transfer, and spray systems.
| Compatible Equipment | Application |
|---|---|
| Graco fluid handling and dispensing systems using air-operated fluid regulation | Pressure regulation for fluid delivery circuits |
| Bonding and adhesive dispensing equipment | Maintains consistent material pressure during application |
| Sealing and gasketing systems | Provides precise fluid pressure control for repeatable bead quality |
| Encapsulation and thermal management systems | Controls fluid flow for sensitive manufacturing processes |
| Spray packages and fluid transfer equipment | Ensures stable operating pressure and improved system performance |
| Metering, molding, underfill, infusion and unloading systems | Supports accurate pressure regulation across multiple industrial applications |

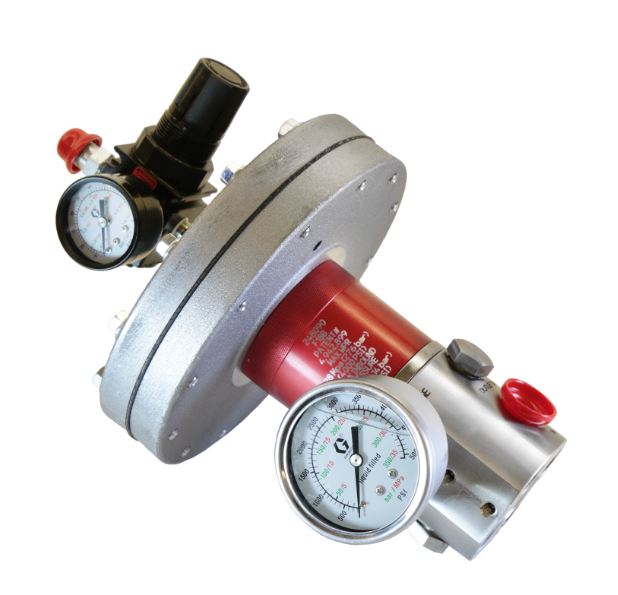

The Graco 248090 is an air-operated fluid pressure regulator designed to provide accurate and dependable pressure control in industrial fluid handling systems. By maintaining consistent downstream fluid pressure, it helps improve process stability, material usage efficiency, and overall equipment performance. The regulator is particularly suited for demanding applications involving dispensing, spraying, bonding, sealing, and fluid transfer operations. Based on Graco specifications, it is designed for use with waterborne and catalyst-compatible materials while delivering precise pressure regulation in high-pressure systems.
| Actuation Type | Air Operated |
|---|---|
| Maximum Working Pressure | 6,000 psi (41 MPa) |
| Maximum Regulated Pressure | 4,000 psi (28 MPa) |
| Minimum Regulated Pressure | 500 psi (3.4 MPa) |
| Maximum Flow Rate | 2 GPM (7.57 L/min) |
| Inlet / Outlet Size | 1/2 in. NPT |
| Gauge Port | 1/4 in. NPT |
| Maximum Viscosity | 15,000 cP |
Consistent fluid pressure is critical for achieving repeatable production results and protecting downstream equipment. The Graco 248090 regulator helps maintain balanced system pressure, minimizes pressure fluctuations, and supports accurate fluid delivery across a wide range of industrial processes. Its rugged construction, wear-resistant internal components, and service-friendly cartridge design make it a dependable solution for demanding manufacturing environments.
