Mounting adapter designed to retrofit Graco XD, XDX, and SDX hose reels onto legacy Series 500 mounting patterns without structural modifications.
| Machine / Series | Compatibility Use | Notes |
|---|---|---|
| Graco XD Series Hose Reels | Primary mounting compatibility | Uses top-hole configuration of adapter for direct installation |
| Graco XDX Series Hose Reels | Direct retrofit mounting | Supports upgraded reel systems with new base pattern |
| Graco SDX Series Hose Reels | Retrofit conversion support | Helps transition older installations to newer reel platforms |
| Series 500 Hose Reel Mounting Locations | Legacy mounting replacement | Bottom holes match existing Series 500 bolt patterns for easy retrofit |

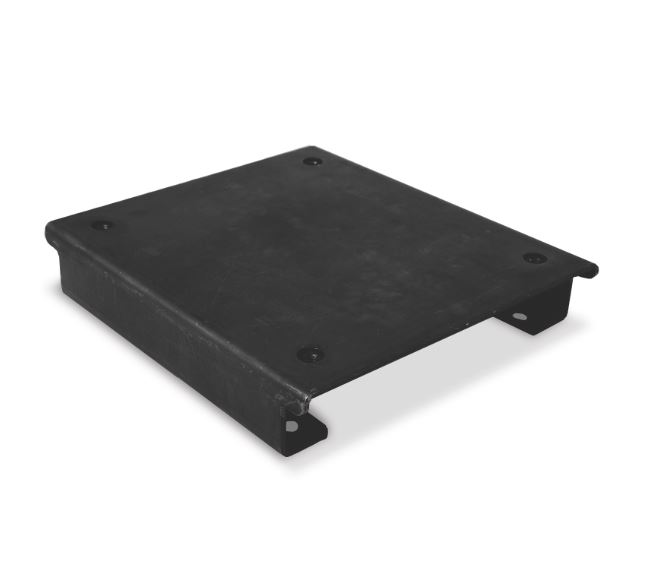

The Graco 24A224 Adapter, Mounting is a factory-designed retrofit mounting kit used in industrial lubrication and hose reel systems. It is engineered to allow seamless installation of newer Graco XD and XDX Series Hose Reels onto existing mounting locations originally configured for Series 500 hose reel systems. This eliminates the need for complete structural rework when upgrading equipment.
The adapter bracket features a dual-hole configuration: the lower mounting holes align with the legacy Series 500 pattern, while the upper holes match the newer XD/XDX base designs. This makes it a critical transition component for facilities modernizing their lubrication or fluid dispensing systems while maintaining existing infrastructure.
The 24A224 adapter is installed between the mounting surface and the hose reel base. The bottom of the bracket aligns with the original mounting holes from older Series 500 installations, while the top side provides a new standardized interface for XD/XDX reel systems. This layered mounting approach allows operators to upgrade equipment without drilling new structural holes or modifying existing service bays.
In industrial environments such as automotive workshops, fleet maintenance centers, and manufacturing plants, this adapter is commonly used during system upgrades where downtime reduction and compatibility retention are critical priorities.
