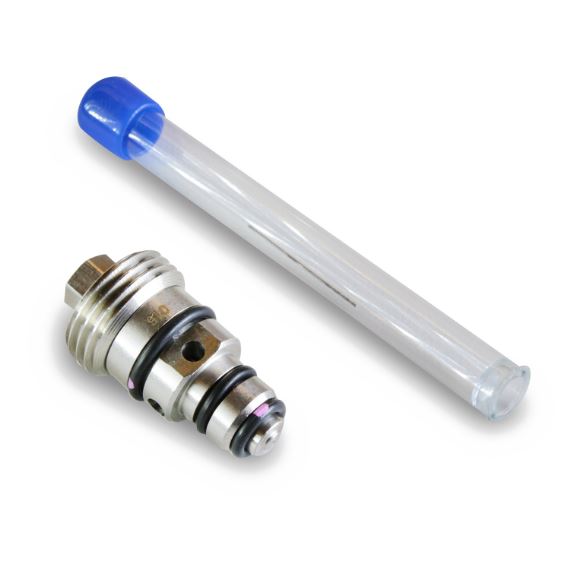

Graco 24D223 Kit, Orifice, Adj, 1/4, 020, Iso
$272.50
In Stock
Adjustable OEM orifice kit designed to deliver precise fluid flow control and consistent spray output in compatible Graco marking systems.
- Genuine Graco part number 24D223
- 1/4 inch configuration with 0.020 orifice size
- Compatible with ISO-based marking fluids
- Enables fine-tuned spray pattern adjustment
- Supports consistent line quality and material usage
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Adjustable Orifice Spray Control Kit Overview
Compatible Machines
| Machine / System | Compatibility |
|---|---|
| Graco LineLazer Series Striping Systems | Compatible adjustable orifice spray control kit |
| Graco FieldLazer Marking Equipment | Supports 1/4 in ISO fluid control applications |
| Graco GrindLazer Marking Attachments | Used for controlled material flow regulation |
| Graco OEM 1/4 in Spray Systems (ISO compatible) | Direct replacement orifice control kit |
Product Overview
The Graco 24D223 Kit, Orifice, Adj, 1/4, 020, Iso is a genuine OEM adjustable orifice kit designed to regulate fluid flow in compatible Graco line marking and surface preparation systems. It allows precise control of spray output for consistent line quality and material application.
Built for ISO-compatible fluids, this adjustable orifice assembly supports accurate flow tuning to match varying jobsite conditions. It helps maintain uniform spray patterns, improve finish consistency, and optimize material usage in professional striping applications.
Key Features
- Genuine Graco OEM adjustable orifice kit
- 1/4 inch configuration with 0.020 orifice size
- Designed for ISO-compatible fluid systems
- Enables precise spray flow control and adjustment
- Improves line consistency and application accuracy
Frequently Asked Questions
It is an OEM adjustable orifice kit designed to regulate and control fluid flow in compatible Graco striping and marking systems.
It is used in select Graco LineLazer, FieldLazer, GrindLazer marking setups, and other ISO-compatible 1/4 inch spray systems.
It controls fluid flow rate and spray output, allowing operators to fine-tune application consistency based on material and surface conditions.
ISO compatibility ensures the kit works effectively with standardized marking fluids, maintaining consistent performance and spray quality.
