8-section base plate for Graco Manzel® MHH divider valve systems, enabling precise sequential lubrication across multiple points in high-pressure industrial applications.
| Machine Type | Application Area | Compatibility Details |
|---|---|---|
| Heavy Industrial Equipment | Centralized lubrication systems | Designed for Graco Manzel® MHH series divider valve assemblies |
| Mining & Construction Machinery | High-load lubrication circuits | Supports 8-section progressive lubrication distribution systems |
| Industrial Compressors | Automated lubrication networks | Used in high-pressure grease and oil distribution systems up to 7500 psi |
| Manufacturing Equipment | Production line machinery | Integrates into multi-point lubrication divider valve setups |

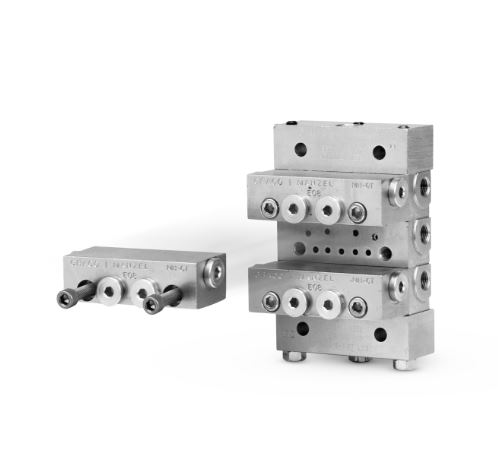

The Graco 24F601 Plate, Base, 8 Section, Mhh is a structural base component used in Graco Manzel® MHH series progressive divider valve systems. It provides a stable mounting platform for an 8-section lubrication distribution assembly.
It enables precise, sequential delivery of grease or oil to multiple lubrication points, ensuring consistent and controlled flow in high-pressure automated lubrication systems. Each section supports accurate metering for demanding industrial operations.
Built for durability, the plate is manufactured from heavy-duty materials designed to withstand harsh operating environments, including mining, manufacturing, and heavy machinery applications.
Its modular design allows seamless integration with other MHH series components for scalable and efficient lubrication system configurations.
