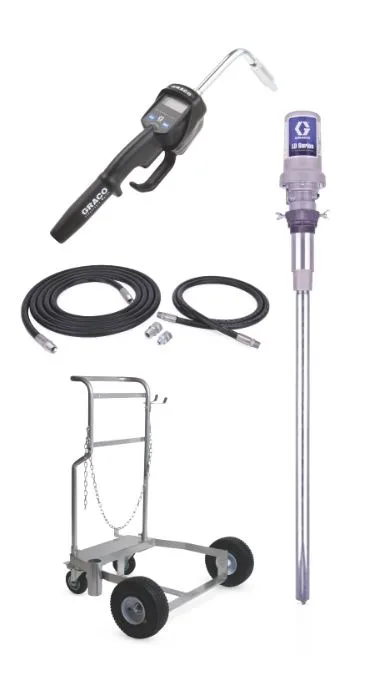

Graco 24H774 Kit, 3:1 Cart-Npt
Cart-mounted 3:1 pneumatic oil pump package for reliable dispensing from 55-gallon drums in professional lubrication systems with NPT connections.
- Compatible with Graco LD Series 3:1 oil pump systems
- Mobile cart design for easy movement between service bays
- NPT threaded connections for standard installations
- Designed for dispensing lubricating oils from 55-gallon (200 L) drums
Graco LD Series 3:1 Oil Pump Package Overview
Compatible Machines
| Compatible Equipment | Compatibility |
|---|---|
| Graco LD Series 3:1 Oil Pump Systems | Fully compatible |
| 55 Gallon (200 Liter) Oil Drum Packages | Designed for cart-mounted oil transfer systems |
| NPT Fluid Handling Installations | Configured with NPT threaded connections |
| Vehicle Service & Industrial Lubrication Stations | Suitable for low- to medium-volume oil dispensing applications |
The Graco 24H774 Kit, 3:1 Cart-NPT is a complete LD Series oil pump package engineered for reliable mobile oil dispensing from standard 55-gallon (200-liter) drums. Featuring a durable 3:1 pneumatic piston pump mounted on a heavy-duty cart, this package delivers smooth fluid transfer while allowing operators to easily move the system throughout workshops and maintenance facilities.
Designed for professional lubrication environments, the package combines dependable pumping performance with a manual dispensing meter and NPT connections, making installation straightforward while providing long service life and consistent oil delivery.
Key Features
- Three Inch Air Motor provides increased power for improved oil flow.
- Engineered for Durability with a patented cup and plate design that eliminates conventional O-rings for longer service life.
- Extended Seal Life through an in-line pump design that aligns the air motor and fluid piston rods.
- Pilot Valves feature a patented self-cleaning design that improves reliability in dirty air environments while minimizing pressure drop.
- Built-In Thermal Relief and Inlet Strainer help protect the pump against thermal expansion and contamination.
- Mobile cart configuration allows easy movement between service bays and workstations.
- Ideal for dispensing engine oil and similar lubricants in automotive, fleet maintenance, and industrial facilities.
Applications
The Graco 24H774 package is well suited for professional lubrication systems requiring dependable oil transfer. Its portable cart design makes it ideal for automotive dealerships, fleet maintenance shops, heavy equipment service centers, industrial manufacturing plants, and maintenance departments that require efficient dispensing directly from 55-gallon oil drums.
