Portable Bulk Oil Dispensing System for High-Efficiency Maintenance
Compatible Machines
| Compatible Equipment | Compatibility Details |
| Graco LD Series Oil Dispensing Systems | Designed for LD Series 5:1 pneumatic oil dispensing applications. |
| Mobile Oil Drum Dispensing Units | Suitable for dispensing oil directly from standard 55-gallon (200 L) drums using a portable cart. |
| Automotive and Heavy Equipment Service Facilities | Ideal for workshops performing routine engine and equipment lubrication. |
| Industrial Lubrication Systems | Compatible with equipment utilizing BSPP threaded fluid connections. |
Product Overview

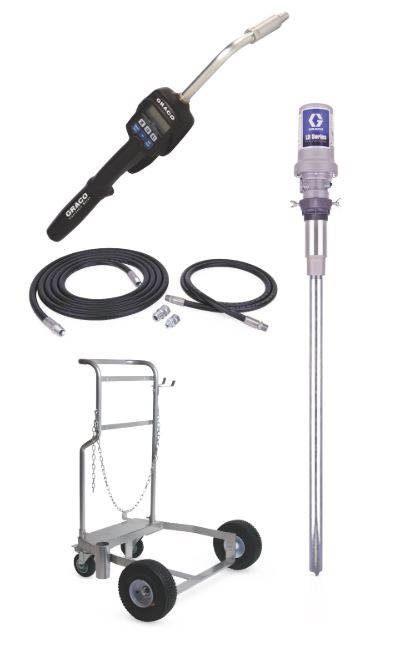

The Graco 24H946 Kit, 5:1 Cart-BSPP is a complete mobile oil dispensing package engineered for dependable lubrication in automotive, industrial, and fleet maintenance environments. Its 5:1 pneumatic piston pump delivers consistent oil flow while the integrated cart provides convenient mobility between service locations.
Designed for bulk oil transfer, the package features BSPP threaded connections for compatibility with international lubrication systems. The durable pump design and portable configuration help improve service efficiency while supporting reliable day-to-day operation.
Key Features
- 5:1 pneumatic piston pump provides efficient oil transfer and dispensing.
- Three Inch Air Motor delivers increased output for improved fluid flow.
- Engineered for Durability with a patented cup and plate design that eliminates O-rings for extended service life.
- Extended Seal Life is achieved through an in-line pump design that minimizes wear.
- Pilot Valves incorporate a patented self-cleaning design to reduce stalling in contaminated air environments.
- Built-In Thermal Relief and Inlet Strainer help protect the pump from pressure buildup and contaminants.
- Heavy-duty mobile cart enables easy transport throughout maintenance facilities.
- BSPP threaded ports simplify integration with compatible international lubrication equipment.
Frequently Asked Questions
The Graco 24H946 is a mobile oil dispensing package designed for transferring and dispensing lubricating oil from bulk containers in professional maintenance applications.
It is compatible with Graco LD Series oil dispensing systems and other lubrication equipment that uses BSPP threaded fluid connections.
BSPP threads are commonly used in international hydraulic and lubrication systems, providing secure and standardized fluid connections.
The integrated cart allows technicians to transport the dispensing package easily between workstations, improving efficiency during routine maintenance.
