U-cup piston seal for 100cc Graco fluid sections, ensuring tight dynamic sealing to maintain pressure and prevent leakage during high-pressure pump operation.
| Equipment Type | Compatibility Details |
|---|---|
| Graco 100Cc Piston Pump Systems | Designed for fluid sections requiring U-cup piston sealing elements in 100cc displacement assemblies. |
| Graco Air-Operated High-Pressure Sprayers | Compatible with select industrial spray systems requiring precision piston sealing performance. |
| Graco Industrial Coating Equipment | Used in heavy-duty fluid handling pumps where pressure retention and leak prevention are critical. |

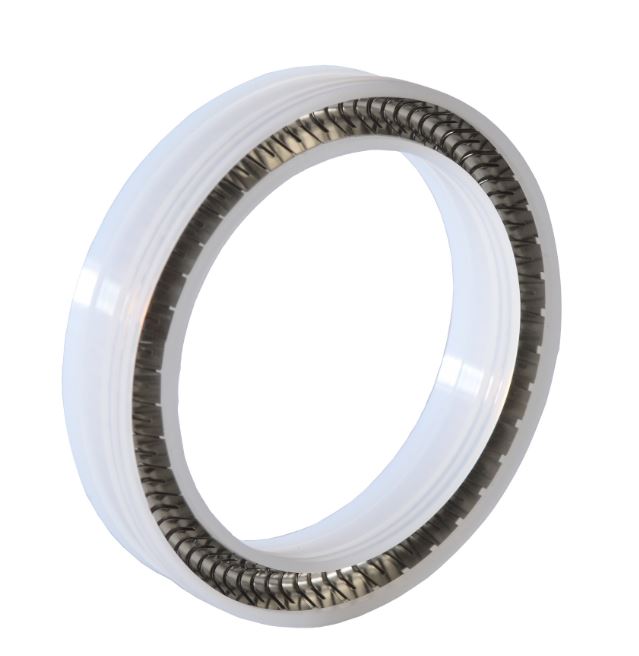

The Graco 24L022 Seal, U-Cup, Piston, 100Cc is a precision-engineered sealing component used in Graco 100cc piston pump fluid sections. It is designed in a U-cup profile to create a tight, dynamic seal around the piston during reciprocating movement, ensuring efficient pressure retention within the pump system.
This seal plays a critical role in preventing fluid leakage, maintaining consistent pressure output, and supporting smooth piston operation under high-pressure industrial conditions. Manufactured to OEM specifications, it ensures reliable sealing performance and long service life in demanding spray and coating applications.
