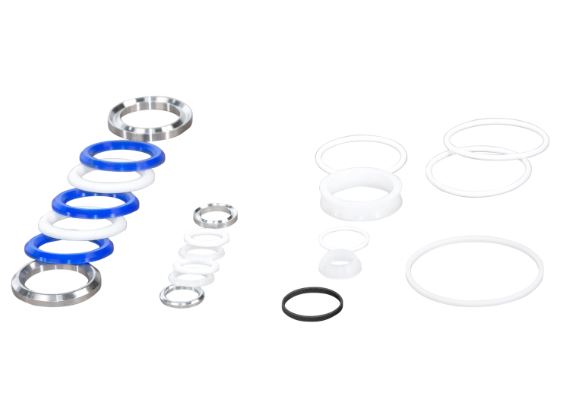

The Graco 255509 Kit, Complete Seal, L200CS is a genuine replacement seal kit designed to restore the performance and reliability of Graco L200CS displacement pumps. This complete rebuild kit includes the essential sealing components required to service worn pump packings and seals, helping maintain proper pressure, reduce leakage, and extend pump service life.
Compatible Machines & Pump Systems
The Graco 255509 Complete Seal Kit is designed for equipment utilizing the L200CS 200cc Check-Mate Carbon Steel Severe Duty Displacement Pump, including:
- Graco L200CS Check-Mate 200cc Carbon Steel Severe Duty Displacement Pumps
- Check-Mate Material Supply Systems equipped with L200CS lowers
- NXT Air-Powered Pump Packages using L200CS displacement pumps
- Industrial Grease Dispensing Systems with L200CS pump assemblies
- Sealant Transfer and Dispensing Systems utilizing L200CS lowers
- Adhesive Supply and Extrusion Systems using L200CS pumps
- Heavy-duty Industrial Material Transfer Equipment fitted with L200CS displacement pumps
Key Features
| Part Number | 255509 |
| Product Type | Complete Seal Rebuild Kit |
| Designed For | L200CS Displacement Pumps |
| Pump Capacity | 200cc |
| Material Compatibility | Carbon Steel Severe Duty Pump Assemblies |
| OEM Manufacturer | Graco |
Benefits of Replacing Worn Seals
- Helps restore original pump performance and efficiency.
- Reduces fluid leakage caused by worn packings and seals.
- Maintains consistent pressure during operation.
- Minimizes downtime through preventive maintenance.
- Extends the service life of the displacement pump.
- Provides a cost-effective alternative to complete pump replacement.
Typical Applications
The Graco 255509 Kit, Complete Seal, L200CS is commonly used in industrial pumping systems handling grease, adhesives, sealants, coatings, and other medium-to-high viscosity materials where reliable fluid transfer and consistent pump performance are critical.
Frequently Asked Questions
The kit contains the primary sealing and packing components required to perform a complete seal rebuild on compatible L200CS displacement pumps.
This seal kit is specifically designed for the L200CS 200cc Check-Mate Carbon Steel Severe Duty Displacement Pump and systems that utilize this pump lower.
Replacement is recommended when the pump experiences leakage, pressure loss, reduced efficiency, or during scheduled preventive maintenance intervals.
Yes, the Graco 255509 Kit, Complete Seal, L200CS is an OEM replacement component manufactured by Graco for proper fit and performance.
