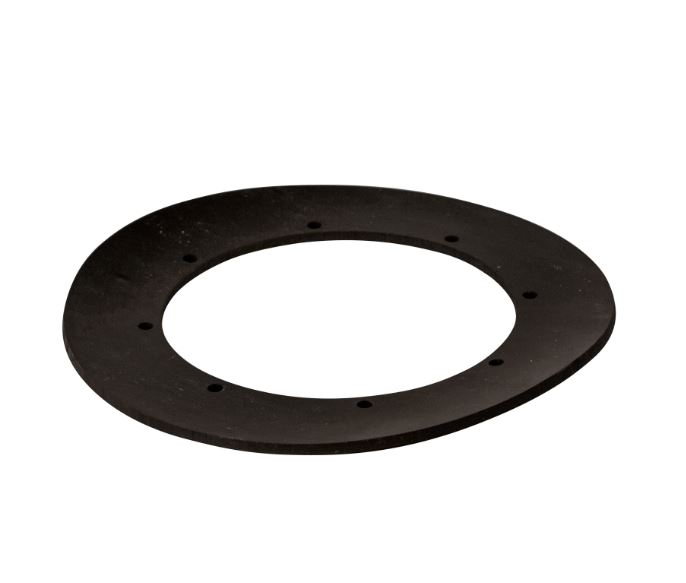

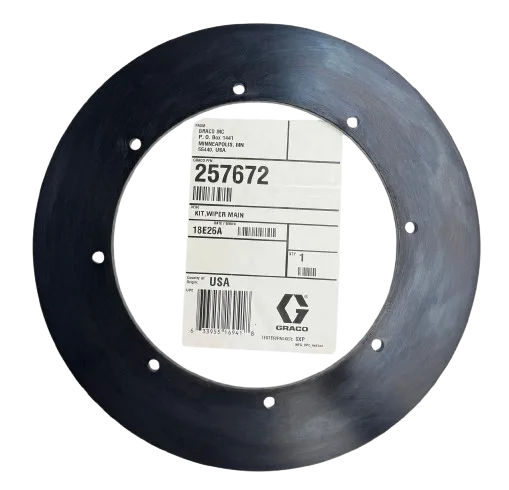

Part number 257672 is a genuine OEM main wiper for 20-liter (5-gallon) platens used in Graco Supply Systems, including the D200, D200s, D60, S20, and L20c ram units. The main wiper forms the primary seal between the platen edge and the inner pail wall, preventing air ingestion, stopping material bypass, and maximizing fluid transfer. Worn wipers are a direct cause of fluid squeezing past the platen, loss of prime, and inconsistent pump pressure. This genuine replacement restores proper platen sealing and reliable system performance.
| Part Number | 257672 |
| Part Description | Main Wiper Kit |
| Brand | Graco Inc. |
| Fits | D200 3-in. Dual Post · D200s 6.5-in. Dual Post · D60 3-in. Dual Post · S20 3-in. Single Post · L20c 2-in. Elevator |
| Platen Size | 20 Liter (5 Gallon) |
| Kit Contents | Main Wiper — Qty. 1 |
| Condition | New — Genuine OEM |
Replaces worn or damaged main wipers that cause fluid bypass, loss of prime, and pressure irregularities. Service manual: Graco 313527ZAL.
Main Wiper Kit for Graco 5-Gallon Supply System Platens
| Part Number | 257672 |
| Part Description | Main Wiper Kit |
| Brand | Graco Inc. |
| Platen Size | 20 Liter (5 Gallon) |
| Kit Contents | Main Wiper — Qty. 1 |
| Wiper Configuration | Single wiper — Qty. 1 · Double wiper platens require Qty. 2 |
| Application | Sealants, adhesives, medium-to-high viscosity fluids |
| Reference Manual | Graco 313527ZAL — Supply Systems Repair-Parts |
| Assembly Torque | 45 in-lbs (5.1 N·m) — eight nuts on outer ring |
| Weight | 2.0 lbs |
| Package Dimensions | 14.4″ W × 14.4″ L × 3.6″ H |
| Condition | New — Genuine OEM |
Compatible Supply Systems
| Supply System | Ram Size | Max Air Inlet Pressure | Platen Size |
|---|---|---|---|
| D200 3-in. Dual Post | 3 inch | 150 psi (1.0 MPa, 10 bar) | 20 L (5 Gal) |
| D200s 6.5-in. Dual Post | 6.5 inch | 125 psi (0.9 MPa, 9 bar) | 20 L (5 Gal) |
| D60 3-in. Dual Post | 3 inch | 150 psi (1.0 MPa, 10 bar) | 20 L (5 Gal) |
| S20 3-in. Single Post | 3 inch | 125 psi (0.9 MPa, 9 bar) | 20 L (5 Gal) |
| L20c 2-in. Elevator | 2 inch | 100 psi (0.7 MPa, 7 bar) | 20 L (5 Gal) |
Compatible Platen Models
| Platen Model | Size | Material | Seal | Wiper Config | Qty. Needed |
|---|---|---|---|---|---|
| 257727 | 20 L (5 Gal) | Carbon Steel | Nitrile | Single Wiper | 1 |
| 257730 | 20 L (5 Gal) | Carbon Steel | Nitrile | Double Wiper | 2 |
What It Does & When to Replace
|
| ||||||||||||||||||||
Related Parts Commonly Serviced Together
| 257681 PE Main Wiper Kit PE support wiper — sits below main wiper in assembly stack | 257694 Dual Wiper Spacer Kit Spacer — required for double wiper platen configurations | 121829 O-Ring Seals platen casting — replace whenever wiper assembly is disassembled | 257639 / 257642 Wiper Assembly Kit 257639 = single wiper rebuild · 257642 = double wiper rebuild |
Frequently Asked Questions
A genuine OEM main wiper for Graco 20-liter (5-gallon) platens used in D200, D200s, D60, S20, and L20c supply systems. The kit contains one main wiper.
Signs include material bypassing the platen edge, the pump losing prime, erratic pressure, or visible cracking or deformation of the wiper. Graco recommends inspecting wipers at every platen service interval.
Yes. Platen model 257730 (5-gallon double wiper, nitrile) uses two main wipers. Order two units of 257672 for a complete double wiper service.
Per Graco manual 313527ZAL, install eight nuts on the outer ring and torque to 45 in-lbs (5.1 N·m).
Graco Supply Systems Repair-Parts Manual 313527ZAL. Wiper removal and installation procedures are covered in the Platen Maintenance section, pages 17–19. Always relieve system pressure before beginning any wiper service.
No. Part 257672 is the main wiper only. The PE main wiper (257681), dual wiper spacer (257694), and O-ring (121829) must be ordered separately. For a complete rebuild, consider wiper assembly kit 257639 (single wiper) or 257642 (double wiper).
