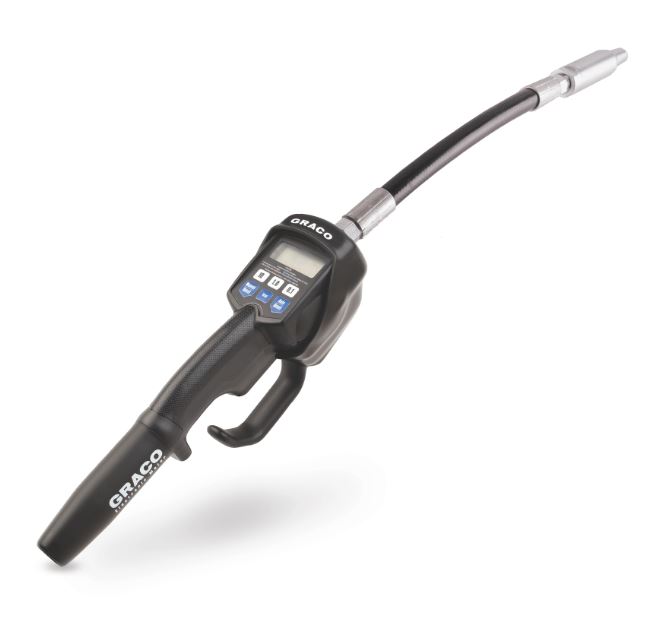

The Graco 258694 LDP5 Metered Valve delivers accurate fluid dispensing with an electronic meter and flexible extension for easier access. Ideal for oil and antifreeze service applications.
```
Graco 258694 LDP5 Valve, Metered, Flex Ext is used with Graco lubrication and fluid handling systems. It is not limited to a single machine and is commonly found in the following systems:
The Graco 258694 LDP5 Valve, Metered, Flex Ext is an electronic metered dispense valve designed for accurate fluid delivery in professional lubrication applications. Featuring a flexible extension and electronic LCD display, it provides reliable dispensing performance for oil, ATF, gear oil, synthetic lubricants, and antifreeze. The built-in automatic nozzle and preset metering capability help improve efficiency while reducing fluid waste.
| Part Number | 258694 |
|---|---|
| Model | LDP5 |
| Type | Electronic Metered Dispense Valve |
| Extension Style | Flexible Extension |
| Maximum Flow Rate | 5 GPM (19 LPM) |
| Maximum Working Pressure | 1,000 psi (6.9 MPa) |
| Inlet Size | 1/2 in. NPT Female |
| Outlet Size | 3/8 in. NPT Female |
| Display | Electronic LCD |
| Typical Fluids | Motor Oil, Gear Oil, ATF, Synthetic Oil and Antifreeze |
```
