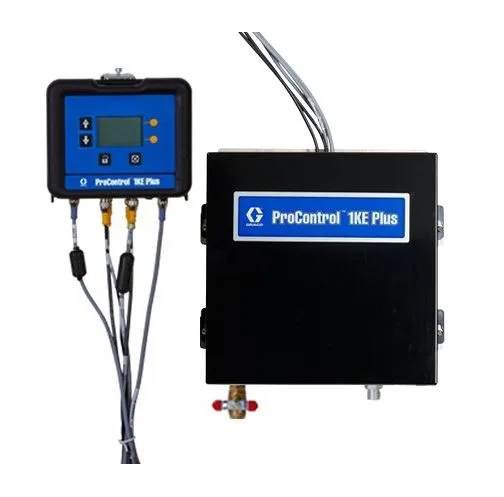

The Graco 25B298 Kit, ProControl 1KE Plus delivers precise fluid and air control for industrial finishing systems, helping improve coating consistency and production efficiency.
The Graco 25B298 Kit, ProControl 1KE Plus is a complete fluid and air control package designed for integration with compatible Graco 1K industrial finishing systems. It is commonly used with:
The Graco 25B298 Kit, ProControl 1KE Plus is an advanced control package developed for industrial finishing applications that require accurate management of fluid pressure, fluid flow, and atomizing air. By continuously monitoring and adjusting operating conditions, it helps maintain a consistent spray pattern while improving coating quality and reducing material waste.
Designed for demanding manufacturing environments, this system supports both manual and automated finishing operations. Its intelligent controls allow operators to monitor material usage, maintain process consistency, and integrate the equipment with PLC-controlled production lines for greater efficiency.
| Feature | Benefit |
|---|---|
| Closed-loop fluid pressure control | Maintains stable operating pressure for consistent coating performance. |
| Fluid flow monitoring | Provides accurate material delivery and improved process control. |
| Atomizing air regulation | Helps produce a uniform spray pattern and quality finish. |
| Advanced Display Control Module (ADCM) | Offers simple monitoring, configuration, and system diagnostics. |
| G3000 Flow Meter | Measures material flow with high precision. |
| Pressure transducer | Continuously monitors fluid pressure during operation. |
| Dual I/P transducers | Allows accurate pneumatic control of fluid and air circuits. |
| Material usage tracking | Supports production reporting and inventory management. |
| PLC compatibility | Easily integrates with automated manufacturing systems. |
| Component | Purpose |
|---|---|
| Advanced Display Control Module (ADCM) | System monitoring and configuration. |
| G3000 Flow Meter | Measures fluid flow accurately. |
| Air Regulator and Gauge | Controls and displays atomizing air pressure. |
| Pressure Transducer | Monitors operating pressure. |
| Two I/P Transducers | Provides electronic-to-pneumatic control. |
| Mounting Hardware | Supports installation on compatible systems. |
The Graco 25B298 Kit, ProControl 1KE Plus is suitable for industrial finishing processes where precise fluid control is essential. It is commonly used in:
