Internal spray head assembly designed to control and stabilize mixed resin and catalyst flow in Graco composite spray systems for consistent application output.
| Equipment | System Type | Application |
|---|---|---|
| Graco RS Series Spray Guns | Internal Mix Spray Systems | Composite lamination, fiberglass reinforcement, industrial spraying |
| Graco Internal Mix Chop & Gel Systems | Front Head Assemblies | Resin/catalyst mixing and controlled spray output |
| Graco High-Output Composite Spray Equipment | Industrial spray systems | Large-scale fiberglass and gel coat applications |

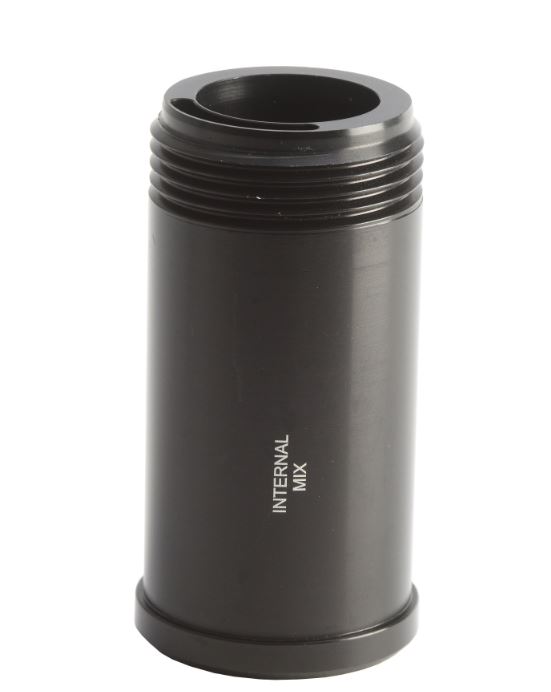

The Graco 262703 is an Internal Spray Head Assembly designed for precision material mixing and atomization in internal mix composite spray systems. It serves as the central spray head component that directs and stabilizes the mixed output of resin and catalyst before application.
Engineered for demanding industrial environments, it supports consistent spray delivery in fiberglass fabrication, gel coat systems, and reinforced composite manufacturing.
The Graco 262703 Internal Spray Head Kit is a key front-end assembly used in internal mix spray guns. It manages the controlled flow of mixed materials, ensuring proper atomization and spray pattern formation during composite application processes.
It works within Graco’s internal mix system architecture, where resin and catalyst are combined inside the gun body before reaching the spray head. This design improves efficiency, reduces overspray, and enhances coating consistency.
Commonly used in fiberglass and gel coat production, it integrates with supporting components such as the air cap, diffuser, and check valve assemblies to maintain balanced spray performance.
