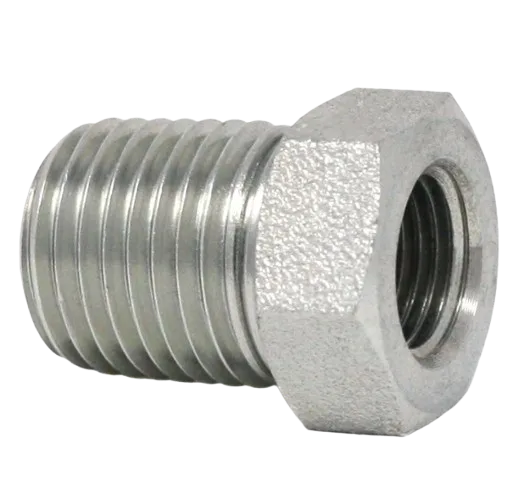

Graco 556402 Fitting, 1/4 X 1/8 Nptf Hex Red
Hex reducing fitting connects 1/4-inch and 1/8-inch NPTF threaded components for secure fluid or air line connections in compatible Graco systems.
- 1/4" x 1/8" NPTF reducing connection
- Hex body allows easy wrench installation
- Provides reliable, leak-resistant threaded sealing
- Compatible with Graco equipment using matching NPTF ports
Reliable Fluid Connection for Graco Lubrication Systems
Compatible Machines
- Graco Air Control 24V/172
- Compatible with Graco automatic lubrication systems and assemblies that specify Part No. 556402 in the official parts list.
Product Overview
The Graco 556402 Fitting, 1/4 X 1/8 NPTF Hex Red is an OEM reducing hex bushing designed to connect components with different NPTF thread sizes in Graco fluid and lubrication systems. It features a 1/4 in. male NPTF thread on one end and a 1/8 in. female NPTF thread on the other, allowing secure and leak-resistant transitions between fluid line components.
Its durable steel construction and hex body make installation and removal straightforward using standard hand tools. As a genuine Graco replacement part, it helps maintain proper sealing, dependable fluid flow, and long-term system reliability.
Key Features
- Genuine OEM Graco replacement fitting.
- 1/4 in. male NPTF x 1/8 in. female NPTF reducing connection.
- Hex body design allows easy tightening with standard wrenches.
- Steel construction provides durability in demanding industrial environments.
- Helps create secure, leak-resistant threaded fluid connections.
Typical Applications
This fitting is used wherever Graco lubrication or fluid handling equipment requires a reduction from a 1/4-inch threaded port to a 1/8-inch threaded connection. It is commonly installed in lubrication circuits, fluid distribution assemblies, pneumatic control systems, and service replacement applications where the original Graco specification must be maintained.
