Energy-Efficient Electric Pump for High-Precision Industrial Fluid Control
Compatible Machines
- Compatible with Graco QUANTM Electric Double Diaphragm Pump Systems
- Designed for Graco EODD (Electric Operated Double Diaphragm) platforms
- Works with automated industrial fluid transfer systems
- Integrates into high-efficiency electric pumping installations
Product Overview

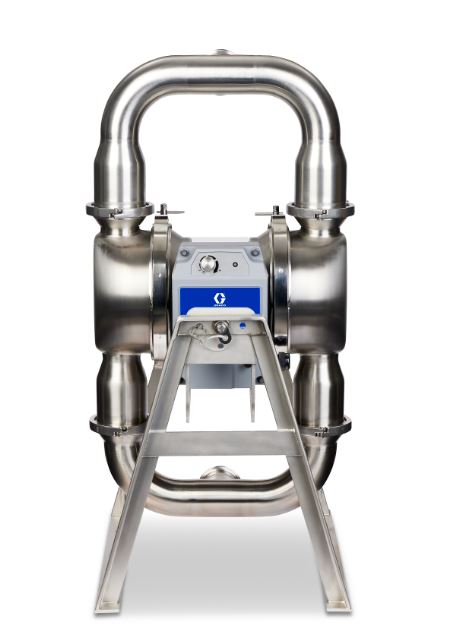

The Graco HE120-0156 Quantm Pump, QHE-PHFF1SSCWPOEPSSA0031 is a next-generation electric-operated double diaphragm (EODD) pump designed for energy-efficient and precise fluid handling. Built on the advanced QUANTM platform, it replaces traditional air-powered systems with an electric drive that improves efficiency, reduces operating costs, and enhances process control.
Engineered for demanding industrial environments, this pump delivers stable, low-pulsation flow performance with high accuracy. Its stainless steel construction ensures durability and corrosion resistance, making it suitable for a wide range of chemical and industrial fluid applications.
Key Features
| Technology | Electric Double Diaphragm (EODD) |
| Model | HE120-0156 / QHE-PHFF1SSCWPOEPSSA0031 |
| Drive System | Electric QUANTM energy-efficient motor system |
| Material | Stainless steel fluid section for durability |
| Performance | Low-pulsation, stable fluid flow output |
| Efficiency | Reduced energy consumption compared to air-driven pumps |
Applications
- Chemical and industrial fluid transfer systems
- Coatings, paints, and finishing operations
- Automated production and manufacturing lines
- Precision dosing and controlled flow applications
- Energy-efficient industrial pumping systems
Installation & Usage Tips
- Confirm compatibility with QUANTM system configurations before installation
- Ensure stable mounting to reduce vibration and wear
- Regularly inspect diaphragms for consistent performance
- Use approved fluids to maintain system integrity
- Follow manufacturer electrical setup guidelines carefully
Frequently Asked Questions
It replaces compressed air systems with an electric drive, reducing energy costs and improving operational efficiency.
It is widely used in chemical processing, coatings, manufacturing, and automated fluid handling systems.
Yes, the stainless steel construction allows safe handling of many corrosive and industrial-grade fluids.
Yes, the electric design reduces mechanical wear, resulting in longer service intervals and lower maintenance requirements.
