Energy-efficient electric diaphragm pump engineered for sanitary fluid transfer in food, beverage, pharmaceutical, and personal care processing systems.
| Compatible Equipment / Systems | Application Type |
|---|---|
| Food processing transfer systems | Transfer of sauces, syrups, oils, dressings, and liquid food products |
| Beverage production lines | Sanitary fluid handling and ingredient transfer |
| Personal care manufacturing equipment | Soap, cream, lotion, and cosmetic fluid transfer |
| Pharmaceutical fluid handling systems | Hygienic and FDA-compliant liquid transfer operations |
| Existing pneumatic diaphragm pump installations | Direct replacement for less-efficient air-operated diaphragm pumps |
| Sanitary processing systems with Tri-Clamp connections | Clean-in-place and hygienic fluid movement applications |

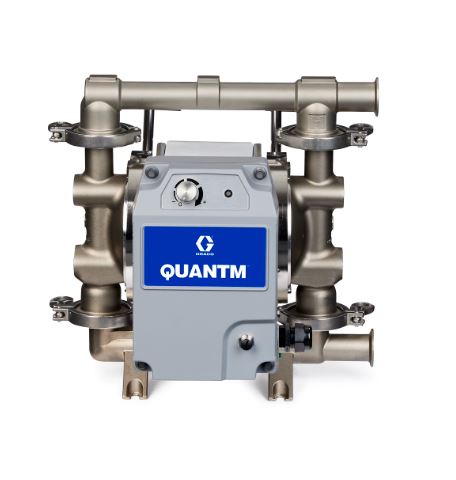

The Graco HE30-0063 QUANTM Pump, configuration QHC-FGFF2SSPTPOPTS130021, is a high-efficiency electric diaphragm pump engineered for hygienic and sanitary fluid transfer applications. Built with a 316 stainless steel fluid section and designed with Tri-Clamp connections, this pump is ideal for industries requiring clean, reliable, and FDA-compliant fluid handling.
The QUANTM series features Graco’s advanced FluxCore drive technology, which eliminates the need for a traditional gearbox while delivering significantly higher torque at low speeds. Compared to conventional air-operated diaphragm pumps, the QUANTM electric platform can reduce energy consumption by up to 80%, helping facilities lower operational costs and improve efficiency.
This model includes a FEP-coated aluminum center section, PTFE balls, PTFE overmold diaphragms, and 316 stainless steel seats for superior chemical resistance and long-term durability. Its seal-less diaphragm design allows smooth, self-priming performance while maintaining consistent flow under demanding production conditions.
| Part Number | HE30-0063 |
|---|---|
| Configuration Code | QHC-FGFF2SSPTPOPTS130021 |
| Pump Type | Electric Diaphragm Pump |
| Voltage | 200-240 VAC, 1 Phase |
| Maximum Flow Rate | 30 GPM (114 LPM) |
| Maximum Fluid Pressure | 100 PSI |
| Fluid Section Material | 316 Stainless Steel |
| Connection Type | Tri-Clamp |
| Diaphragm Material | PTFE Overmold |
| Ball Material | PTFE |
| Seat Material | 316 Stainless Steel |
| Surface Finish | 125 Ra |
