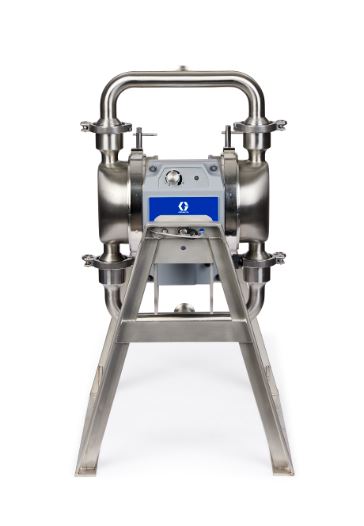

Electric QUANTM diaphragm pump providing efficient, stable fluid transfer for hygienic and industrial processes without reliance on compressed air systems.
| Machine / System Type | Application Area | Integration Notes |
|---|---|---|
| Graco QUANTM Pump Systems | Hygienic industrial processing lines | Configured for direct compatibility within HE series QUANTM platforms |
| Air-Operated Double Diaphragm (AODD) Systems | General fluid transfer operations | Electric retrofit replacement for pneumatic diaphragm pumps |
| Sanitary Production Equipment | Food, beverage, pharmaceutical manufacturing | Compatible with stainless steel piping and hygienic fittings |
| Batch Mixing Systems | Ingredient dosing and blending | Ensures stable flow for consistent batch processing |
| Automated Filling & Dispensing Machines | Packaging and production lines | Supports precise electric-driven output for repeatable filling |
The Graco HE80-0056 QUANTM Pump with configuration QHD-HSFF1SSBNBNBNSSA0021 is a high-efficiency electric double diaphragm pump designed for hygienic and industrial fluid transfer applications. It replaces traditional air-operated systems with an electric drive, improving energy efficiency and delivering more stable flow control.
It is built for continuous-duty operation in industries such as food processing, beverage production, pharmaceuticals, and personal care manufacturing. By removing the need for compressed air, it reduces energy consumption, simplifies system design, and improves operational reliability.
Constructed with 316 stainless steel wetted components and a seal-less diaphragm design, the pump supports hygienic handling of sensitive and regulated fluids. Its configuration ensures durability and consistent performance in demanding production environments.
The Graco HE80-0056 QUANTM Pump is an electrically driven diaphragm pump engineered to replace pneumatic pump systems. It uses a direct electric motor to drive diaphragm movement, eliminating compressed air requirements and improving overall efficiency.
It is suitable for a wide range of fluids, including viscous, shear-sensitive, and hygienic-grade materials. The pump features self-priming capability and stall-on-demand protection, ensuring safe operation under variable pressure and flow conditions.
This design supports lower maintenance needs, improved energy efficiency, and enhanced process control for modern industrial applications.
