Electric Hygienic Diaphragm Pump for High-Precision Industrial Fluid Transfer
Compatible Machines & Process Systems
- Food & Beverage Processing Equipment – hygienic transfer of liquids such as dairy, syrups, and edible oils
- Pharmaceutical Manufacturing Systems – sterile fluid handling for regulated production environments
- Cosmetic Production Lines – suitable for emulsions, gels, creams, and viscous formulations
- CIP/SIP Hygienic Systems – compatible with clean-in-place and sterilization processes
- Industrial Fluid Transfer Skids – retrofit replacement for pneumatic diaphragm pump systems

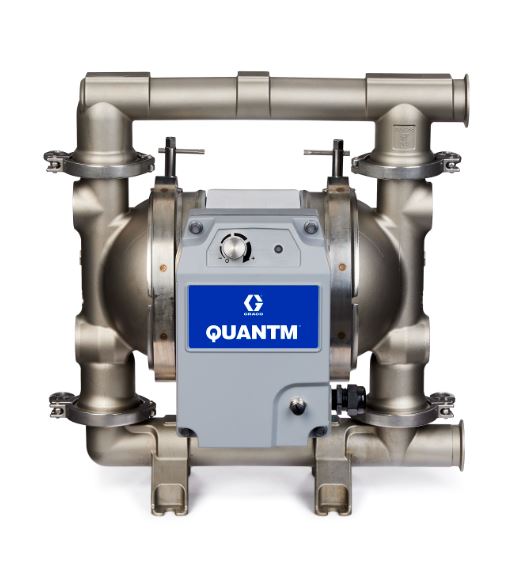

What is Graco QUANTM HE80-0236 Pump?
The Graco QUANTM HE80-0236 is an advanced electric double diaphragm pump designed for hygienic and industrial fluid transfer applications. It replaces traditional air-operated systems with an electric drive that improves energy efficiency, reduces noise, and minimizes maintenance requirements in continuous production environments.
Configured as QHD-FGFF2SSFKFKFKS140021, this model is built with sanitary-grade materials and precision-engineered components to ensure reliable, contamination-free performance in sensitive processing applications.
It is designed for demanding continuous-duty operations where stable flow and hygienic compliance are critical.
Technical Specifications
- Flow capacity: up to 80 GPM (303 L/min)
- Maximum pressure: 100 psi (6.9 bar)
- Wetted parts: 316/316L stainless steel
- Connection type: 2-inch sanitary tri-clamp fittings
- Electric drive system for optimized energy use
Key Features & Benefits
- Eliminates compressed air dependency for lower operating cost
- Stable, low-pulsation fluid delivery performance
- Designed for hygienic and sanitary process compliance
- Seal-less diaphragm structure reduces leakage risk
- Direct retrofit solution for pneumatic diaphragm pumps
Frequently Asked Questions
It replaces pneumatic diaphragm systems with an electric drive, reducing energy use, noise, and maintenance while improving process stability.
Yes, it is built with 316/316L stainless steel and sanitary tri-clamp connections, making it suitable for food, beverage, pharmaceutical, and cosmetic industries.
Yes, it is designed as a direct retrofit solution for many pneumatic diaphragm pump systems with minimal installation changes.
It is widely used in food processing, beverage production, pharmaceuticals, cosmetics, and hygienic chemical transfer systems.
