High-Performance Electric Diaphragm Pump for Hygienic Industrial Applications
Compatible Machines & System Integration
The Graco HE80-0270 Quantm Pump, QHD-HSFF2SSCWSPEPSSA0021 is designed as a drop-in replacement for pneumatic diaphragm pumps and integrates seamlessly into a wide range of hygienic and industrial fluid handling systems.
- Food & Beverage Processing Systems – sauces, syrups, dairy, oils, and viscous food transfer lines
- Personal Care Production Lines – lotions, creams, gels, and cosmetic formulations
- Pharmaceutical Manufacturing Equipment – hygienic fluid transfer and dosing systems
- Existing Pneumatic Diaphragm Pump Installations – direct replacement without major system modification
- Tri-Clamp (1.5") Hygienic Piping Systems – compatible with standard sanitary process connections
What is the Graco HE80-0270 Quantm Pump?

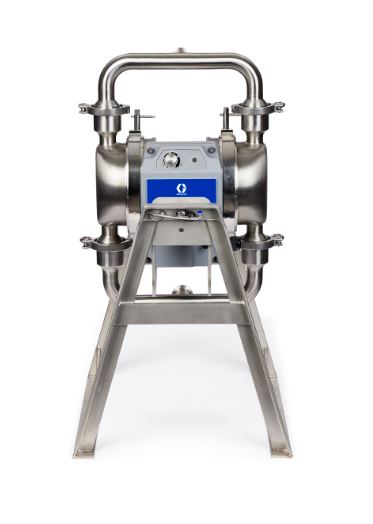

The Graco HE80-0270 Quantm Pump, QHD-HSFF2SSCWSPEPSSA0021 is a next-generation electric diaphragm pump (EODD) engineered for hygienic and industrial fluid transfer applications. It replaces traditional air-operated double diaphragm (AODD) pumps with a highly efficient electric drive system.
Built around Graco’s QUANTM electric motor technology, this pump delivers consistent, pulse-free flow while significantly reducing energy consumption compared to pneumatic systems. It features a 316L stainless steel fluid section, PTFE-based wetted components, and a hygienic Tri-Clamp 1.5-inch connection for sanitary installations.
The unit is optimized for industries requiring high cleanliness standards, including food processing, beverage production, pharmaceuticals, and personal care manufacturing. Its seal-less diaphragm design minimizes leakage risk and reduces maintenance downtime.
Key Technical Highlights
- Flow rate: up to 80 GPM (303 L/min)
- Maximum pressure: 100 psi (6.9 bar)
- Material construction: 316L stainless steel wetted parts
- Diaphragm material: PTFE overmold
- Connection type: 1.5" Tri-Clamp hygienic fitting
- Voltage: 200–240 VAC single-phase electric drive
- Operating temperature range: -40°C to 82°C
Frequently Asked Questions
The main advantage is energy efficiency. The electric drive significantly reduces compressed air usage, lowering operating costs while providing more stable and precise flow control.
Yes, it is designed for hygienic applications with 316L stainless steel wetted parts, PTFE sealing elements, and Tri-Clamp connections that meet food-grade and pharmaceutical standards.
It is widely used in food & beverage processing, pharmaceuticals, cosmetics, and personal care manufacturing where hygienic fluid handling is required.
Yes, it is designed as a direct replacement for many pneumatic diaphragm pumps, using standard Tri-Clamp connections and similar footprint compatibility.
