Spherical Rod End Bearing for Precision Mechanical Motion Control in Graco Systems
Compatible Machines
The Graco LPA-120 Bearing, Spherical, Rod End is used in mechanical linkage and motion control assemblies within select Graco fluid handling and proportioning equipment.
- Graco Reactor Series Proportioning Systems (mechanical drive/linkage assemblies)
- Graco Fusion Spray Systems (select actuator and motion components)
- Graco Hydraulic and Pneumatic Drive Assemblies (rod-end linkage points)
- Industrial Graco Metering and Dispensing Equipment (motion support joints)
Compatibility may vary depending on system revision and mechanical configuration. Always confirm with the official Graco parts manual before replacement.

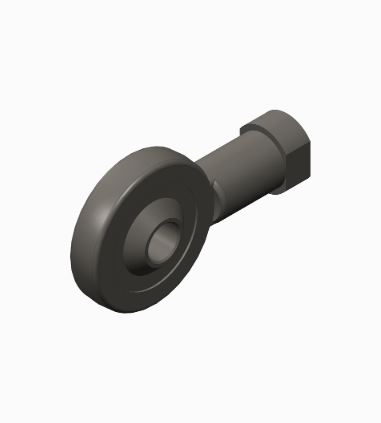

What is Graco LPA-120 Bearing, Spherical, Rod End?
The Graco LPA-120 Bearing, Spherical, Rod End is a precision-engineered joint component designed to support controlled articulation in high-load mechanical systems. It enables smooth angular movement while maintaining stability in reciprocating and linkage-driven assemblies.
It is typically used in Graco industrial equipment where consistent motion transfer and reduced mechanical stress are required under demanding operating conditions.
Key Features
- Spherical rod end design for multi-directional movement
- Reduces stress in mechanical linkage systems
- OEM-grade component for Graco equipment assemblies
- Designed for high-load industrial applications
- Improves alignment tolerance in moving mechanical parts
Frequently Asked Questions
It allows controlled angular movement in mechanical linkage systems while reducing friction and mechanical stress.
It is used in actuator arms, drive linkages, and motion assemblies within select Graco proportioning and spray systems.
It compensates for misalignment and allows smoother articulation in moving mechanical assemblies under load.
Yes, it is designed as an OEM-spec replacement component for compatible Graco equipment assemblies.
