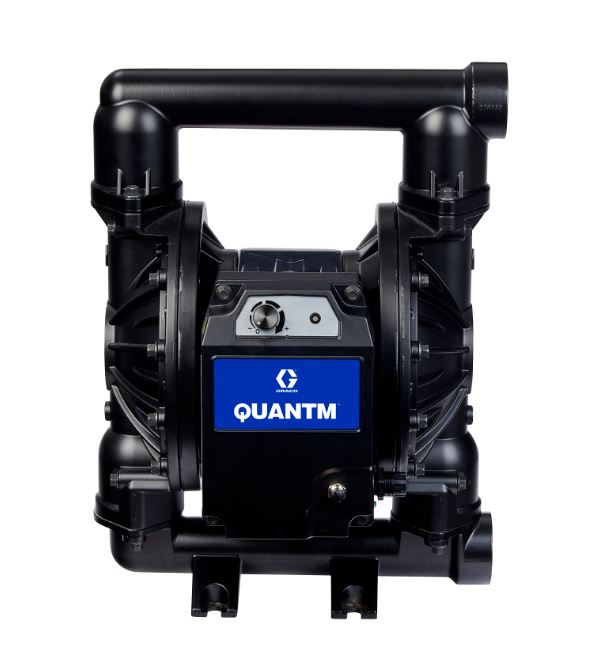

The Graco TE120-0008 QUANTM Pump QTE-ALFC1BNBNBN-A200 is a high-efficiency electric operated double diaphragm (EODD) pump engineered for demanding industrial fluid transfer applications. Designed with Graco’s advanced QUANTM technology, this pump delivers reliable performance, reduced energy consumption, quieter operation, and lower maintenance compared to traditional air-operated diaphragm pumps.
Compatible Machines & Systems
- Chemical transfer systems
- Paint and coating circulation systems
- Industrial ink delivery systems
- Wastewater transfer and sump systems
- Drum unloading and fluid evacuation equipment
- CIP and process transfer skids
- Industrial batching and dosing lines
- Petroleum and oil transfer systems
- Manufacturing production lines replacing pneumatic AODD pumps
- Fluid handling systems using 2-inch diaphragm pumps
- Compatible replacement for select Graco Husky pump systems
- Compatible with many Wilden, Yamada, Sandpiper, and Versa-Matic diaphragm pump installations
Product Features
| Pump Type | Electric Operated Double Diaphragm (EODD) Pump |
| Series | QUANTM i120 |
| Port Size | 2 Inch |
| Maximum Flow Rate | Up to 120 GPM (450 LPM) |
| Voltage | 200–240V |
| Fluid Section Material | Aluminum |
| Elastomer Material | Buna-N |
| Motor Technology | FluxCore Electric Drive |
Key Advantages
- Consumes significantly less energy than traditional air-operated diaphragm pumps
- Quiet electric operation helps improve workplace conditions
- Reduced maintenance requirements and downtime
- Seal-less diaphragm design minimizes leakage risks
- Handles abrasive and shear-sensitive fluids efficiently
- Capable of dry running for short periods without damage
- Designed for industrial automation and PLC integration
- Excellent replacement option for pneumatic AODD pump systems
Model Configuration Breakdown
| Code | Description |
| QTE | QUANTM Electric Pump |
| AL | Aluminum Fluid Section |
| FC1 | FluxCore Motor Configuration |
| BNBNBN | Buna-N Seats, Balls, and Diaphragms |
| A200 | 200–240V Electrical Configuration |
Frequently Asked Questions
The pump is designed for industrial fluid transfer applications including chemicals, coatings, wastewater, petroleum products, inks, and general manufacturing processes.
Yes, the QUANTM series is commonly used to replace traditional pneumatic AODD pumps while reducing energy consumption and maintenance costs.
This model features an aluminum fluid section with Buna-N elastomers for reliable chemical and fluid compatibility in industrial applications.
Yes, the pump is designed for integration into automated industrial systems and supports modern PLC-controlled operations.
