Compatible Machines & Systems
The Graco TE120-0014 QUANTM Polypropylene Diaphragm Pump is designed as a high-efficiency electric replacement for traditional air-operated diaphragm pumps. It integrates easily into a wide range of industrial fluid handling and transfer systems.
- Chemical dosing and transfer systems
- Paint circulation and supply systems
- Industrial batching and mixing equipment
- Wastewater treatment transfer stations
- Drum unloading and fluid evacuation systems
- OEM industrial fluid handling equipment
- Automated manufacturing production lines
- Existing 2-inch diaphragm pump installations
- Compatible with many 2-inch pneumatic diaphragm pump setups including Graco Husky, Wilden, Yamada, and Versa-Matic systems
Product Overview

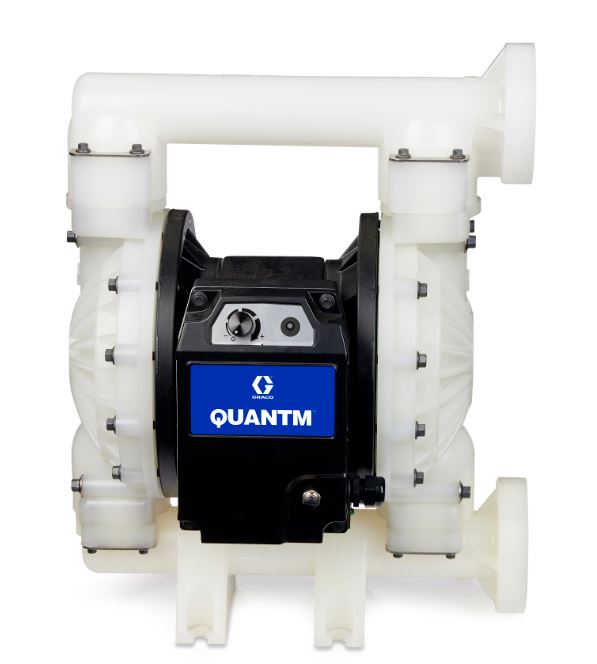

The Graco TE120-0014 QUANTM Pump is an advanced electric double diaphragm pump engineered for energy-efficient industrial fluid transfer. Built with a durable polypropylene fluid section, this pump is suitable for handling corrosive chemicals, paints, detergents, wastewater, and abrasive fluids while reducing operational costs compared to traditional compressed-air systems.
| Feature | Description |
| Pump Type | Electric Double Diaphragm (EODD) |
| Series | QUANTM i120 |
| Fluid Section Material | Polypropylene |
| Maximum Flow Rate | 120 GPM (454 L/min) |
| Connection Size | 2-inch flanged inlet and outlet |
| Motor Type | 200–240 VAC 3-Phase Electric Motor |
| Diaphragm Material | Santoprene |
| Ball Material | Santoprene |
| Design Advantage | Seal-less, self-priming, and energy-efficient operation |
Key Benefits
- Delivers significantly lower energy consumption compared to pneumatic diaphragm pumps
- Quiet electric operation with reduced plant noise
- Handles abrasive, corrosive, and shear-sensitive fluids
- Supports continuous-duty industrial applications
- Reduces maintenance associated with compressed air systems
- Self-priming design for reliable startup and operation
- Ideal for modern automated fluid handling systems
Typical Applications
- Chemical processing
- Industrial coating transfer
- Paint and ink circulation
- Wastewater handling
- Detergent manufacturing
- Industrial cleaning systems
- Fluid batching systems
- Manufacturing process transfer
Frequently Asked Questions
The pump is used for industrial fluid transfer applications including chemicals, paints, detergents, wastewater, and abrasive fluids where energy-efficient electric pumping is required.
Yes. The Graco TE120-0014 QUANTM Pump is commonly used as a replacement for traditional 2-inch air-operated diaphragm pumps in industrial systems.
The polypropylene construction allows the pump to handle corrosive chemicals, cleaning agents, paints, coatings, wastewater, and many abrasive industrial fluids.
This pump operates using a 200–240 VAC 3-phase electric power supply.
