Compatible Systems & Industrial Applications

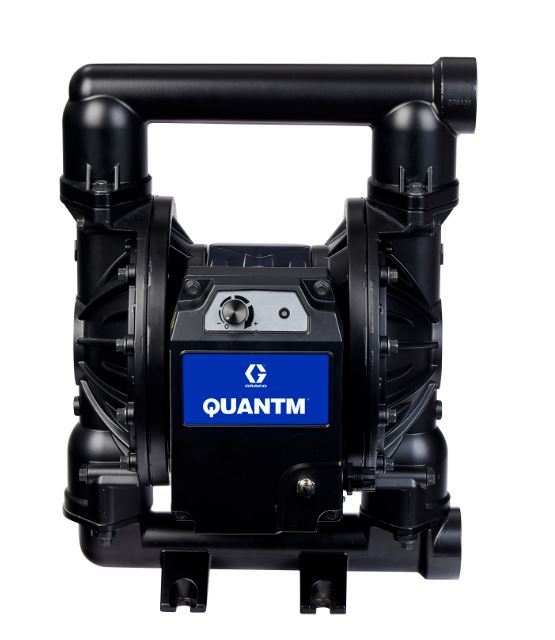

The Graco TE120-0039 QUANTM Pump QTE-ALFC1PPBNBNPTA100 is engineered for advanced fluid transfer applications requiring energy efficiency, reliable diaphragm performance, and reduced operating costs. This electric double diaphragm pump is commonly integrated into industrial fluid handling systems where consistent flow and chemical compatibility are critical.
Compatible Machines & Systems
- Chemical processing and transfer systems
- Industrial paint and coating circulation units
- Wastewater treatment equipment
- Food and beverage fluid transfer systems
- Drum unloading and tote transfer stations
- Industrial filtration and recirculation systems
- Ink, adhesive, and sealant dispensing systems
- CIP (Clean-In-Place) processing equipment
- OEM industrial fluid handling machinery
- Automotive manufacturing fluid transfer systems
Product Overview
The QUANTM i120 Electric Double Diaphragm Pump delivers efficient fluid movement while significantly reducing air consumption and maintenance associated with traditional air-operated diaphragm pumps. Its electric-driven design provides quieter operation, improved energy savings, and dependable performance in demanding industrial environments.
| Model Number | TE120-0039 |
| Series | QUANTM i120 |
| Pump Type | Electric Double Diaphragm Pump (EODD) |
| Fluid Section Material | Aluminum |
| Port Size | 2 in. NPT |
| Maximum Flow Rate | Up to 120 GPM |
| Maximum Working Pressure | 60 PSI |
| Voltage | 200–240V Electric Configuration |
Key Features
- Energy-efficient electric operation helps reduce overall operating costs
- Quiet performance compared to conventional air-operated pumps
- Self-priming diaphragm design for reliable fluid transfer
- Dry-run capability without damaging the pump
- Chemical-resistant wetted materials suitable for demanding industrial fluids
- Low pulsation flow characteristics for smooth system performance
- Industrial-grade aluminum construction for durability and long service life
Material Configuration
| Component | Material |
| Fluid Housing | Aluminum |
| Seats | Polypropylene |
| Balls | Buna-N |
| Diaphragms | Buna-N |
Frequently Asked Questions
The pump is designed for industrial fluid transfer applications including chemical handling, coatings, wastewater processing, food production systems, and fluid circulation equipment.
No. The QUANTM i120 is an electric double diaphragm pump designed to provide improved efficiency and lower energy consumption compared to traditional air-operated diaphragm pumps.
Yes. The pump is designed with dry-run capability, helping protect the system during temporary interruptions in fluid supply.
Common industries include chemical manufacturing, automotive production, industrial coatings, wastewater treatment, food processing, and OEM fluid handling operations.
