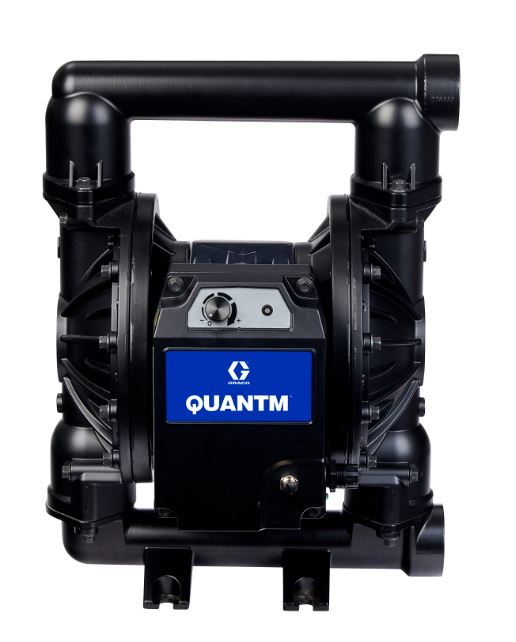

The Graco TE120-0074 QUANTM Pump QTE-ALFC2SAPTPSPTA200 is a high-efficiency electric-operated double diaphragm pump engineered for demanding industrial fluid handling applications. Designed to reduce energy consumption while delivering consistent flow performance, this pump is ideal for transferring chemicals, coatings, oils, solvents, and other industrial fluids.
Compatible Machines & Systems
This QUANTM electric diaphragm pump is commonly integrated into the following industrial systems and machines:
- Industrial fluid transfer skids
- Paint circulation and coating systems
- Chemical dosing and transfer stations
- Drum unloading systems
- Waste oil evacuation equipment
- Industrial mixing and batching machines
- Manufacturing process lines
- Solvent transfer systems
- Wastewater treatment equipment
- Existing AODD pump installations requiring electric upgrade replacements
Product Features
| Model | TE120-0074 |
| Series | QUANTM i120 |
| Pump Type | Electric Operated Double Diaphragm (EODD) |
| Port Size | 2 Inch BSPT |
| Maximum Flow Rate | 120 GPM (450 LPM) |
| Maximum Pressure | 60 PSI (4.14 Bar) |
| Power Supply | 200-240 VAC Single Phase |
| Wetted Material | Aluminum with PTFE Components |
| Diaphragm Material | PTFE / Santoprene |
| Seat Material | 316 Stainless Steel |
| Self-Priming | Yes |
| Seal-less Design | Yes |
Industrial Applications
The Graco TE120-0074 QUANTM Pump is designed for industrial environments that require reliable and energy-efficient fluid movement. Its electric-driven operation helps reduce compressed air usage while maintaining smooth and consistent pumping performance.
- Chemical processing facilities
- Paint and coatings manufacturing
- Petroleum and oil transfer operations
- Ink and solvent handling systems
- Mining and wastewater applications
- General industrial manufacturing plants
Performance Benefits
- Lower energy consumption compared to pneumatic diaphragm pumps
- Quiet electric operation
- Reduced maintenance requirements
- Smooth and consistent fluid transfer
- Capable of handling abrasive and shear-sensitive materials
- Compact industrial design for flexible installation
Frequently Asked Questions
The pump is used for industrial fluid transfer applications including chemicals, paints, solvents, oils, coatings, and wastewater processing.
Yes, the QUANTM i120 pump is commonly used as an electric replacement for traditional AODD pumps to improve energy efficiency and reduce compressed air usage.
Yes, the pump features a self-priming design that supports efficient startup and fluid transfer operations.
The pump is suitable for handling chemicals, oils, solvents, coatings, abrasive fluids, and other industrial liquids compatible with aluminum and PTFE materials.
