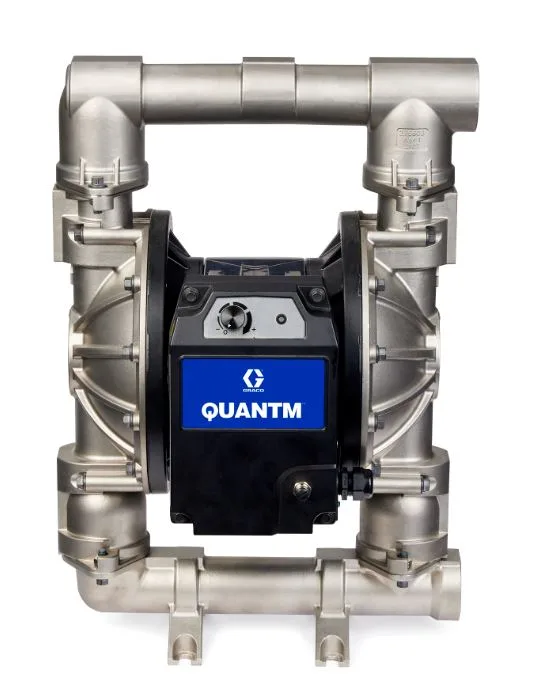

The Graco TE120-0247 QUANTM Pump is a high-efficiency electric double diaphragm pump engineered for demanding industrial fluid transfer applications. Built with a durable 316 stainless steel fluid section, this pump delivers reliable performance for chemicals, coatings, inks, wastewater, and abrasive materials while reducing energy consumption compared to traditional air-operated diaphragm pumps.
Compatible Machines & Systems
- Paint circulation systems
- Chemical transfer skids
- Ink transfer and dispensing systems
- Drum unloading systems
- Industrial spray systems
- Automated production lines
- Water and wastewater treatment equipment
- Food and beverage fluid transfer systems
- Corrosive chemical handling systems
- General industrial fluid processing equipment
- Replacement setups for existing AODD pump systems
- Systems using Graco Husky diaphragm pumps
- Systems using Wilden diaphragm pumps
- Systems using Sandpiper diaphragm pumps
- Systems using Yamada diaphragm pumps
Key Features
| Model | TE120-0247 |
| Pump Series | Graco QUANTM |
| Pump Type | Electric Double Diaphragm Pump (EODD) |
| Fluid Section Material | 316 Stainless Steel |
| Motor Technology | FluxCore Electric Drive |
| Maximum Flow Rate | Up to 120 GPM (Approx. 450 LPM) |
| Maximum Pressure | 60 PSI (4.14 Bar) |
| Operation | Self-priming and dry-run capable |
| Application | Chemicals, coatings, inks, wastewater, and industrial fluids |
Product Benefits
- Designed for continuous-duty industrial applications
- Improves energy efficiency compared to pneumatic diaphragm pumps
- Seal-less design helps reduce maintenance requirements
- Handles abrasive and corrosive fluids with dependable performance
- Provides smooth and consistent fluid transfer
- Suitable for upgrading existing air-operated pump systems
Typical Industrial Applications
The Graco TE120-0247 QUANTM Pump is commonly used in manufacturing facilities, processing plants, coating operations, chemical handling systems, wastewater treatment facilities, and industrial transfer applications requiring efficient and reliable fluid movement.
Frequently Asked Questions
This pump is used for industrial fluid transfer applications including chemicals, paints, inks, wastewater, coatings, and abrasive materials.
Yes, the Graco QUANTM Pump is commonly used as an energy-efficient replacement for traditional air-operated diaphragm pumps from several major brands.
The pump is designed to handle industrial fluids including corrosive chemicals, coatings, inks, wastewater, and abrasive liquids depending on material compatibility.
Yes, this electric diaphragm pump is designed to safely handle dry-run conditions and self-priming operation.
