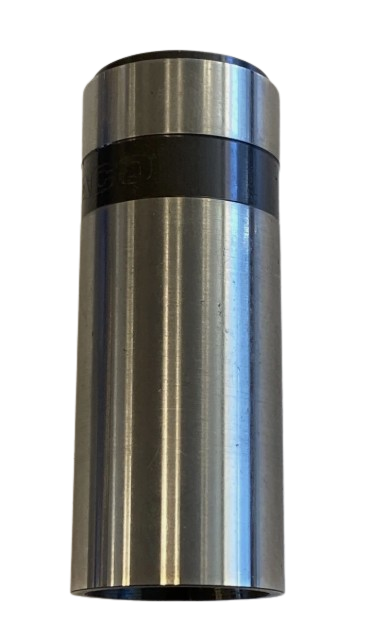

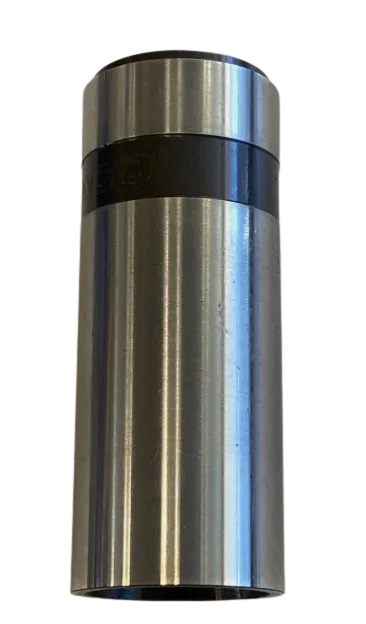

Graco 185213 Pump Sleeve

The Graco 185213 Pump Sleeve is a genuine OEM cylinder sleeve that restores pump performance and sealing efficiency in select Graco airless sprayers. Ideal for replacing worn or damaged sleeves in high-use machines.

Ensures consistent pressure and smooth spray pattern
Fits Ultra, Ultimate, Nova, and GM 3500 series sprayers
Durable construction for long service life
Replaces part numbers 185213 and 185-213

Retail Price: $334

You save: $87.51 (26.20%)

Our Price: $246.49

Based on 0 reviews

Description

Compatibility & Key Details

Compatible Machines

The Graco 185213 Pump Sleeve (also shown as 185-213) fits the following Graco airless sprayers and legacy equivalents:

Ultra 333
Ultra 433
Ultra 750 / Ultra 750 Plus
Ultra 1000 / Ultra 1000 Plus
Ultra Plus 750 / Ultra Plus 1000
Ultimate 900 Plus
Ultimate 1000 / Ultimate 1000 Plus
Ultimate Plus 900 / Ultimate Plus 1000
Nova 700
Super Nova 700
GM 3500 (also listed as 3500 GM)
LineLazer 3500
EM 590 / 590 EM
Fultronic 1000 (Fuller O’Brien)

Product Details

Part Number	185213 (aka 185-213)
Item Type	Pump Sleeve / Cylinder Sleeve for airless pump fluid section
Function	Provides the wear surface for the pump piston/rod; restoring pressure and sealing when replaced.
Common Families	Graco Ultra, Ultimate, Nova, Super Nova, GM 3500, LineLazer 3500, EM 590, and related legacy variants.

Overview

The Graco 185213 Pump Sleeve is the cylinder body within the fluid section that houses the piston/rod and primary packings. Replacing a worn sleeve helps recover operating pressure, reduce spitting, and prevent premature wear of other pump components.

OEM-format replacement for select Ultra / Ultimate / GM 3500 / LineLazer 3500 / EM 590 pumps.
Best paired with fresh packings and inspection of the piston/rod for scoring.
Cleanliness during install is critical—flush and protect sealing surfaces.

Fitment Notes

Model names may appear as “Plus” or legacy labels; the sleeve geometry remains the key match.
If your sleeve shows scoring/pitting, also inspect piston rod, packings, seats and replace as needed.
For heavy-use sprayers, consider a full fluid-section rebuild while the pump is open.

Frequently Asked Questions

Yes—both refer to the same Graco 185213 Pump Sleeve; some catalogs include a dash in the part number.

Loss of pressure, spitting/surging, leakage past packings, and visible scoring/pitting inside the cylinder are common signs the pump sleeve should be replaced.

It’s recommended to install new packing kits and inspect the piston/rod and seats. Combining these with the new sleeve restores sealing and longevity.

Yes, the LineLazer 3500 and GM 3500 are listed among compatible machines for the 185213 sleeve. Always confirm by model/serial in your parts manual.

Some suppliers list aftermarket equivalents that replace Graco 185213. Quality varies—verify warranty and specs if not using OEM.
