Compatible Machines (Airless Sprayers)
Graco 17Y042 Airless Spray Gun connects to most professional airless paint sprayers rated up to 3600 psi with standard 1/4" hose fittings and RAC X tips. Common compatible Graco sprayers include (not exhaustive):
- Ultra / Ultra Max II: 395 PC, 490 PC Pro, 495, 595, 695, 795, 1095
- ProContractor Series: Ultra Max II 495/595/695/795/1095 (PC/Pro)
- GMAX II Gas-Driven: 3900, 5900, 7900
- TexSpray Mark Series: Mark IV, Mark V, Mark VII
- DutyMax & other high-output airless units up to 3600 psi
- Magnum Pro line (e.g., ProX17/19/21, Pro210ES) when fitted with 1/4" airless hose and within pressure/flow limits
Tip: Always match the gun’s pressure rating, hose thread, and RAC X tip size to your sprayer’s output and coating.
Overview & Key Benefits

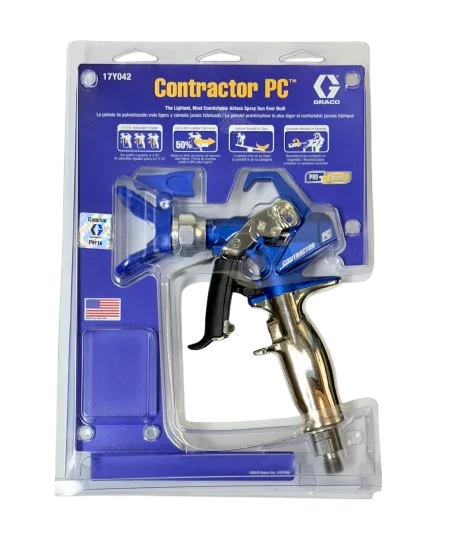

The 17Y042 is Graco’s Contractor PC airless gun supplied with a RAC X 517 SwitchTip and guard. It’s engineered for low trigger force, adjustable trigger length, and fast on-the-job rebuilds via the ProConnect™ Cartridge.
- 3600 psi max working pressure for pro-grade coatings
- RAC X reversible tip technology for quick unclogging
- ProConnect Cartridge—replace wear parts in minutes
- Ergonomic, lightweight body with smooth pull & reduced fatigue
- On-gun swivel for easier hose management
Specifications
| Spec | Detail |
|---|
| Part Number | 17Y042 (Contractor PC Gun with RAC X 517) |
| Max Working Pressure | 3600 psi (24.8 MPa) |
| Tip System | RAC X (includes 517 SwitchTip & Guard) |
| Inlet / Hose | Standard airless 1/4" swivel connection |
| Cartridge | ProConnect™ replaceable needle/seat cartridge |
| Recommended Use | Architectural paints, primers, enamels, elastomerics (within tip/flow limits) |
What’s in the Box
- Graco 17Y042 Contractor PC Airless Spray Gun (cartridge installed)
- RAC X 517 SwitchTip and RAC X Guard
- On-gun 1/4" swivel
- Quick start / safety information
Fitment & Setup Notes
- Confirm your sprayer supports up to 3600 psi and adequate flow for the selected RAC X tip size.
- Use the correct gun filter mesh and clean strainers to reduce tip clogs and improve finish.
- Avoid solvents containing methylene chloride during cleaning.
Frequently Asked Questions
If your unit is an airless sprayer with a standard 1/4" hose connection and pressure capacity up to 3600 psi, the 17Y042 will typically work. See the Compatible Machines list above and match your hose thread, pressure rating, and RAC X tip size to your sprayer’s output.
A 517 tip (0.017" orifice, ~10" fan at 12") suits many architectural latex paints and primers. Heavier or lighter materials may require different RAC X tip sizes—always select a tip that your sprayer can support and that matches the coating manufacturer’s guidance.
The Contractor PC features reduced trigger force, an adjustable trigger length, and a ProConnect™ Cartridge so you can replace internal wear parts quickly on the job—cutting downtime and maintenance complexity.
Use a 1/4" airless hose rated for at least 3600 psi, and match the gun filter mesh (e.g., 60–100 mesh for most latex) to your coating and tip size to minimize clogs and improve finish quality.
