Kit Overview & Compatibility
Compatible Machines

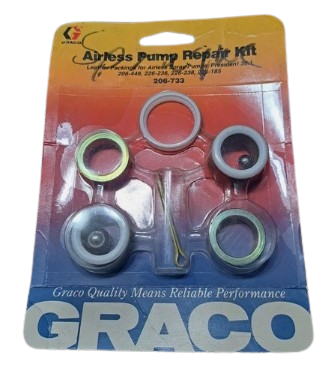

The Graco 206733 Pump Repair Kit is a fluid-section rebuild kit for select industrial pumps. It fits the following 30:1 and related Graco pump families:
- Graco President 30:1 (also referenced as Hydra-Spray President) pumps
- Graco Monark 30:1 pumps
- Graco Viscount I 3000 (fluid section)
- Graco Viscount II 3000 (fluid section)
What This Kit Does
Use the 206733 Pump Repair Kit to restore pressure, prime, and sealing performance by replacing worn packings, valves, and other fluid-path wear parts in the fluid section (not the air motor).
Key Benefits
- OEM-fit solution for designated President/Monark/Viscount fluid sections
- Cost-effective alternative to replacing the entire pump
- Restores output, prime, and leak control when packings/valves are worn
- Supports solvent-borne and water-borne coatings as permitted by the pump’s original spec
Typical Kit Contents & Specs
| Category | Details |
| Kit Type | Fluid-Section Rebuild (packings, valves, seals; contents may vary by batch) |
| Common Contents | Leather/PTFE packings, O-rings/seals, intake & outlet valve components, piston-related wear parts, hardware/glands as applicable |
| Pump Families | President 30:1, Monark 30:1, Viscount I 3000, Viscount II 3000 (fluid section) |
| Section Covered | Fluid Section Only (air-motor seals are not included) |
| Use Cases | Loss of pressure, poor prime, external leaks at packings, check-valve wear, routine preventive maintenance |
Basic Installation Tips
- Fully relieve system pressure and lock out air/electrical sources.
- Disassemble the fluid section; clean and inspect metal components.
- Install new packings and valve parts in the correct sequence/orientation.
- Reassemble to specified torques; lubricate packings as directed by Graco.
- Prime with compatible solvent/material; check for leaks and final pressure performance.
Frequently Asked Questions
Check the pump nameplate and manual. This kit matches Graco President 30:1, Monark 30:1, and Viscount 3000 fluid sections. If your model or ratio differs, contact support with your exact model/part number for verification.
No. The 206733 is a fluid-section repair kit only. Order the correct air-motor kit separately if needed.
Persistent leaks at the packings, pressure loss under load, failure to prime, or fluttering/back-leakage at the checks typically signal worn packings or valves.
Typical contents include leather and PTFE (Teflon) packings suited to a wide range of coatings. Always verify chemical compatibility with your material.
Relieve pressure before service, keep parts clean, follow the packing stack order, use recommended lubricants, and torque to spec. After assembly, prime with compatible solvent and check for leaks at low pressure before returning to service.
