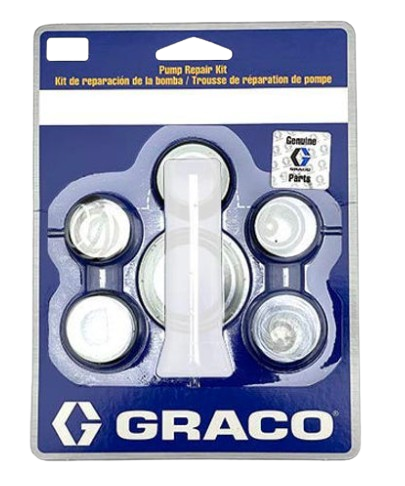

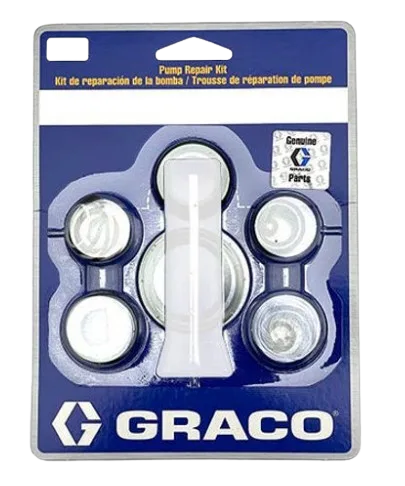

Graco 207349 Packing Repair Kit

The Graco 207349 Packing Repair Kit restores the seal integrity of your Graco 5:1 Bulldog pump with 1000 cc Stainless-Steel Lower. Perfect for maintaining consistent pressure and leak-free operation.

OEM replacement for 253596 SS Lower
Includes all required packings and seals
Ensures smooth pump performance and durability
Fits Graco 5:1 Bulldog Pumps with 1000 cc SS Lower

$805.8

Based on 0 reviews

Description

About the Graco 207349 Packing Repair Kit

Compatible Machines

Use this kit only with the following Graco pump configurations:

• Graco 5:1 Bulldog pumps equipped with a 1000 cc Stainless-Steel Lower
• Fluid section 253596 (SS lower) — direct fit
• Systems specified for the 1000 cc SS Lower family in industrial coating/transfer setups

Not compatible with 4000 cc lowers, carbon-steel lowers, or non-Bulldog ratios unless the OEM manual specifies 207349.

Overview & Key Details

The Graco 207349 Packing Repair Kit is the OEM sealing/packing set for the stainless-steel fluid section (“lower”) used on select Graco Bulldog pumps. Replacing worn packings restores prime, pressure, and leak-free performance without changing the entire lower.

Kit Type	OEM packing repair kit for pump lower (fluid section)
Lower Size / Material	1000 cc Stainless-Steel Lower
Direct Lower Reference	253596 (SS lower)
Typical Platform	Graco 5:1 Bulldog pneumatic piston pumps
Function	Restores sealing to eliminate bypass/leaks and recover consistent output

What’s Included (OEM Contents)

Kit contains OEM packings and wear components (verify with your manual):

Part No.	Description (summary)
166055	Packing component
166056	Packing component
166057	Packing component
166061	Packing component
166062	Packing component
166065	Packing component
166066	Packing component
166073	Packing component
166074	Packing component
166075	Packing component

Contents may vary by revision; always cross-check with the parts list for your specific lower.

Why Choose the Graco 207349 Kit

OEM-matched materials for proper fit and service life in SS lowers
Restores pressure stability, reduces pulsation, and helps maintain finish quality
Lower cost and downtime versus full lower replacement

Installation Notes & Best Practices

Confirm your lower is a 1000 cc Stainless-Steel unit and/or 253596.
Follow the OEM service manual torque specs and stack order for packings.
Lubricate packings per manual; flush and pressure-test after reassembly.
If your pump is a different ratio or lower size/material, select the correct kit instead.

No. It’s intended for Graco 5:1 Bulldog pumps that use the 1000 cc Stainless-Steel Lower, specifically the 253596 SS lower. Other sizes or materials require different kits specified in the OEM manual.

Check your pump’s nameplate, parts list, or exploded diagram. Look for “1000 cc SS lower” or the fluid-section reference 253596. If your documentation lists 207349 as the packing kit, you’re on the right kit.

Loss of prime, pressure drop, visible fluid leakage from the lower, or excessive pulsation are common signs. Inspect packings during scheduled maintenance or after abrasive/solvent exposure.

Yes, if all other components (rod, cylinder, seats, check balls) are in-spec. Follow the OEM stack order and torque specs. If wear is found on hard parts, replace those per the manual.

Choose the correct kit for your lower’s size and material. The 207349 is for 1000 cc SS lowers. Consult your manual or contact support with your pump model and lower part number to identify the proper kit.
