Graco 220629 Cylinder Valve
$359.53
$421.00
Save 15%
In Stock

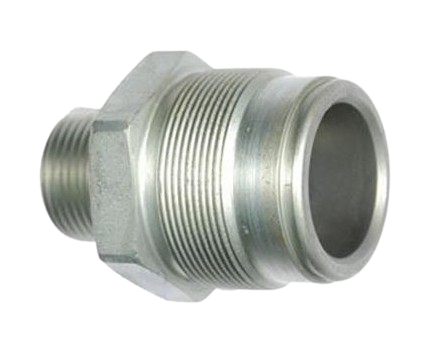

The Graco 220629 Cylinder Valve is an OEM replacement part designed for reliable performance and smooth material flow within the pump assembly. Ideal for restoring prime and consistent pressure on Graco professional sprayers.
- Replaces worn or leaking inlet housing valve
- Ensures steady spray pressure and flow control
- Compatible with Ultra, Ultimate, and GM Series sprayers
- OEM quality for long-lasting durability
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Detailed Overview & Specs
Compatible Machines
The Graco 220629 Cylinder Valve (also referred to as an inlet / intake housing valve) is used on the following sprayers:
- Graco GM 5000
- Graco GM 10000
- Graco Ultra 1500
- Graco Ultra Plus 1500
- Graco Ultimate 1500
- Graco Ultimate Plus 1500
Product Summary
The Graco 220629 Cylinder Valve is a genuine OEM component installed in the cylinder/inlet area of the pump to control material flow into the pumping chamber. Replacing a worn or leaking cylinder (intake) valve restores proper priming, pressure stability, and overall pump performance on compatible Graco units.
Key Details
| Part Number | 220629 (also shown as 220-629) |
|---|---|
| Item Type | Valve, Cylinder / Inlet Housing Valve |
| Function | Controls intake flow into the pump cylinder to maintain prime and working pressure. |
| Fits | GM 5000, GM 10000, Ultra/Ultra Plus 1500, Ultimate/Ultimate Plus 1500 |
| Use Case | Replace when the sprayer won’t hold prime, struggles to build pressure, or shows inlet valve wear/damage. |
| What’s Included | 1 × Graco 220629 Cylinder Valve (OEM component) |
Service Notes
- Always verify your exact sprayer model and revision against its parts manual before ordering.
- Depressurize the system and disconnect power before disassembly.
- Inspect related wear parts (piston, sleeve, packings, seats) and replace as needed to prevent repeat failures.
- Use clean work surfaces to avoid contaminating the inlet/check area during installation.
Frequently Asked Questions
Check the parts list for your exact model and revision (e.g., Ultra 1500 vs. Ultra Plus 1500). The list should reference 220629 (or 220-629) as the cylinder/inlet valve. If unsure, contact support with your model and serial number.
Difficult priming, pressure drop/flare, pulsation, or material flowing back into the inlet are common signs. If these occur on compatible machines, the 220629 Cylinder Valve may need replacement.
It’s best practice to inspect packings, seats, piston, and seals. If they show wear, replace them during the same service to restore full performance and reduce downtime.
Yes—this listing is for an OEM Graco cylinder valve. Some aftermarket options exist, but OEM ensures fit and performance on the listed models.
Depressurize and disconnect power first. Clean mating surfaces, check orientation, and torque per the service manual. After reassembly, prime with appropriate fluid and test for consistent pressure.
