Graco 222587 Repair Kit (U-500)

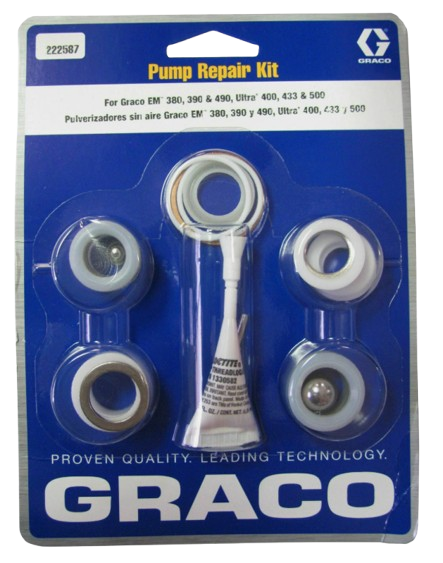

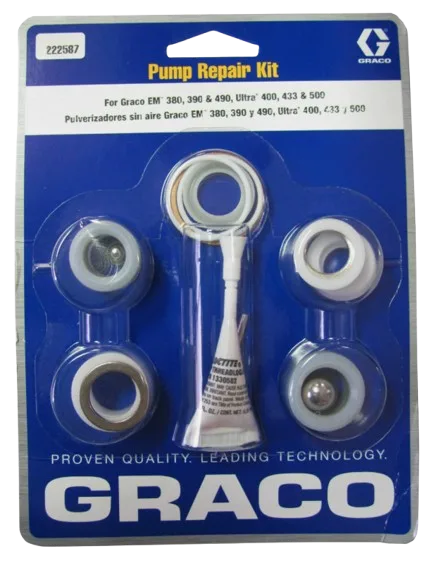

The Graco 222587 Repair Kit (U-500) restores your sprayer’s performance by replacing worn packings and seals in the fluid pump section. Ideal for maintenance of professional-grade Graco models listed below.

Includes key wear parts for pump rebuild
Prevents leaks and pressure loss
Designed for EM and Ultra Series sprayers
OEM-quality components ensure reliable performance

Retail Price: $102

You save: $28.51 (27.95%)

Our Price: $73.49

Based on 0 reviews

Description

Compatibility & Details — Graco 222587 Repair Kit (U-500)

Compatible Machines

Graco EM 380
Graco EM 390
Graco EM 490
Graco Ultra 400
Graco Ultra 433
Graco Ultra 500 (U-500)

What is the Graco 222587 Repair Kit (U-500)?

The Graco 222587 Repair Kit (U-500) is a pump packing / seal service kit for select Graco airless sprayers listed above. It refreshes the fluid section by replacing worn packings, seals, and related wear items—restoring pressure, reducing leaks, and improving prime/spray consistency versus replacing the entire pump.

Quick Specs

SKU / Part #	222587
Product Type	Pump Packing / Repair Kit
Common Name	U-500 Repair Kit; often described as packing/seal kit for pump service
Primary Use	Restore pump performance by renewing packings/seals; address pressure drop, leakage, pulsation
Compatibility	See Compatible Machines list above

Why choose the 222587 kit?

Restores optimal spraying pressure and finish quality
Fixes common symptoms like leaking from packings or weak prime
Cost-effective vs. replacing the complete pump assembly
Designed for the models listed to match OEM tolerances

Installation Tips

Confirm exact model/series and serial number before purchase
Clean the pump cylinder and seating surfaces thoroughly before reassembly
Observe correct orientation of packings, seals, and balls during install
After repair, flush and pressure-test with appropriate solvent/coating per Graco guidelines

Frequently Asked Questions

Not always. Certain Ultra 500 variants use different packings. Check your sprayer label (model, series, and serial) or contact support to confirm before ordering.

Loss of pressure, pulsation at the gun, difficulty priming, or coating leakage from the pump packings are common signs that packings/seals are worn and should be replaced.

Basic hand tools usually suffice. A clean work area, correct torque, and following the service manual are key. Some techs use a soft-jaw vise to stabilize the pump section during disassembly.

Use proper filtration and tip size, avoid over-pressurizing, flush after each use, and store per Graco recommendations. Keep the pump lubricated where applicable.

This page references the OEM part number 222587. Always confirm the brand/origin on the product page before checkout if OEM status is critical to your application.
