Compatible Machines & Product Overview: Graco 244571 Carbide Seat Repair Kit
Compatible Machines
- Graco Mark IV TexSpray airless sprayer
- Graco Mark V TexSpray airless sprayer
- Other Graco industrial airless sprayers with intake valve using part 244571
Product Summary

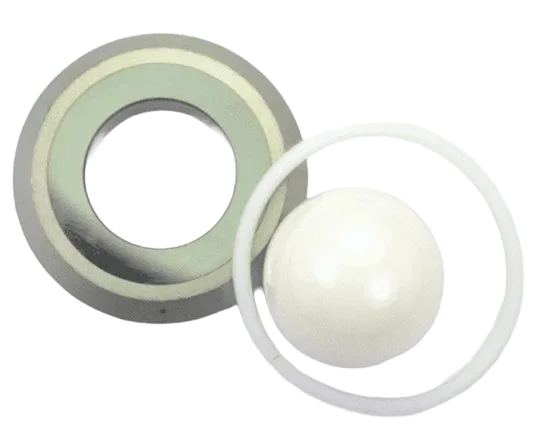

The Graco 244571 Carbide Seat Repair Kit is a genuine replacement part kit that restores the intake valve’s seat assembly in compatible Graco airless sprayers. This kit includes a carbide seat, a durable ceramic ball, and a leak-resistant O-ring to rebuild the intake valve for consistent fluid delivery and improved spray performance.
Key Features & Benefits
- Carbide seat designed for high wear resistance in airless fluids.
- Ceramic ball for smooth sealing and long service life.
- O-ring seal reduces leakage and improves pump consistency.
- Restores proper intake valve performance and fluid flow.
- Helps reduce downtime and extend sprayer service life.
Technical Specifications
| Part Number | 244571 |
| Description | Carbide Seat Repair Kit |
| Includes | Carbide seat, ceramic ball, O-ring |
| Application | Intake valve rebuild in airless paint sprayers |
Why This Kit Matters
Over time, the intake valve seat in high-pressure airless sprayers can wear or leak, causing reduced pump performance and inconsistent spraying. The Graco 244571 kit restores the intake valve to near-new condition — improving paint flow, reducing pressure drops, and minimizing the need for frequent rebuilds.
Frequently Asked Questions
This kit includes a carbide-tipped seat, a ceramic ball, and an O-ring — all components needed to rebuild the intake valve seat assembly in compatible airless sprayers.
Yes. By replacing worn seating components, this repair kit helps restore proper fluid flow and pump sealing — which can improve spray consistency and overall sprayer efficiency.
If your sprayer is experiencing reduced pressure, inconsistent spray pattern, or fluid leakage at the intake valve, worn internal valve parts may be the cause — and replacing them with this kit can resolve those issues.
