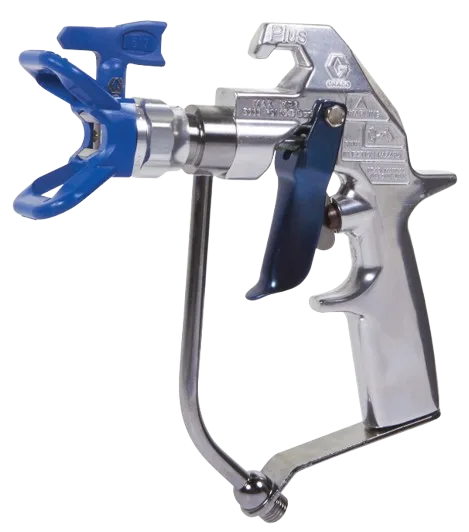

Graco 246240 Silver Plus Airless Spray Gun

The Graco 246240 Silver Plus Airless Spray Gun is a compact, pro-grade gun for sprayers up to 5000 psi with a 1/4 in NPSM hose connection. Ships ready to spray.

Pressure: up to 5000 psi
Inlet: 1/4 in NPSM (male)
Trigger: 2-finger control
Includes: RAC X 517 tip & guard
Wetted parts: stainless steel
Fits: Ultra / Ultra Max II / GMAX II / Mark series

Retail Price: $524

You save: $201.74 (38.50%)

Our Price: $322.26

Based on 0 reviews

Description

Pro-Grade Airless Gun for 5000-psi Sprayers

Compatible Machines

The Graco 246240 Silver Plus Airless Spray Gun connects to any airless unit that supports up to 5000 psi and uses a 1/4 in NPSM hose fitting. Popular Graco series and models include:

Ultra / Ultimate / Classic series (e.g., 395, 490/495, 595)
Ultra Max II series: 490, 495, 595, 695, 795, 1095, 1595
GMAX II gas sprayers: 3900, 5900, 7900
Mark texture sprayers: Mark IV, Mark V, Mark VII (for airless coating applications within 5000-psi rating)

Fitment rule of thumb: if your sprayer’s max working pressure ≤ 5000 psi and the hose end is 1/4 in NPSM, this gun will fit.

Overview

Built for daily contractor use, the Graco 246240 Silver Plus Airless Spray Gun combines a rugged stainless-steel fluid path with a compact, comfortable 2-finger trigger. It arrives ready to spray with a RAC X 517 SwitchTip & guard, giving reliable, easy tip-changes on the job.

Key Features

Rated to 5000 psi for high-pressure performance
1/4 in NPSM (male) fluid inlet for broad sprayer compatibility
2-finger trigger for precise control and reduced hand fatigue
RAC X 517 tip & guard included for quick clearing and pattern consistency
Stainless-steel wetted parts for durability with a wide range of coatings

Specifications

Model	Graco 246240 (Silver Plus Airless Spray Gun)
Maximum Working Pressure	5000 psi
Fluid Inlet	1/4 in NPSM (male)
Trigger Style	2-finger
Tip/Guard Included	RAC X 517 SwitchTip & guard
Wetted Materials	Stainless steel fluid path
Weight	Approx. 18 oz (0.5 kg)

What’s Included

Silver Plus 246240 spray gun
RAC X 517 tip & guard
Gun filter (installed), user documentation

Fitment Notes

Verify your sprayer’s max pressure ≤ 5000 psi.
Confirm hose end is 1/4 in NPSM or use an appropriate adapter.
Use RAC X tips matched to your coating and desired pattern.

Frequently Asked Questions

If your unit is rated at or below 5000 psi and uses a 1/4 in NPSM hose connection, the Graco 246240 Silver Plus will fit. See the Compatible Machines list above for common models.

The gun includes a RAC X 517 SwitchTip and guard—great all-rounder for many architectural coatings. You can swap to any compatible RAC X tip as needed.

The fluid path uses stainless steel, providing broad chemical compatibility. Always verify your coating’s SDS and flush procedures, and follow Graco’s maintenance guidance.

Filter and tip care are key: clean or replace the gun filter regularly, flush after each use, and keep spare RAC X tips on hand to maintain pattern quality.
