Graco 111613 U-Cup Packing

Graco 111613 U-Cup Packing – Applications & Details

Compatible Machines

• Graco Fluid Handling Pumps (models requiring U-Cup packing)
• Graco Pneumatic and Hydraulic Cylinders using U-Cup seals
• Various Graco valve assemblies in construction and industrial sprayers
• Graco systems that specify U-Cup Packing part 111613 in their parts breakdown

Product Overview

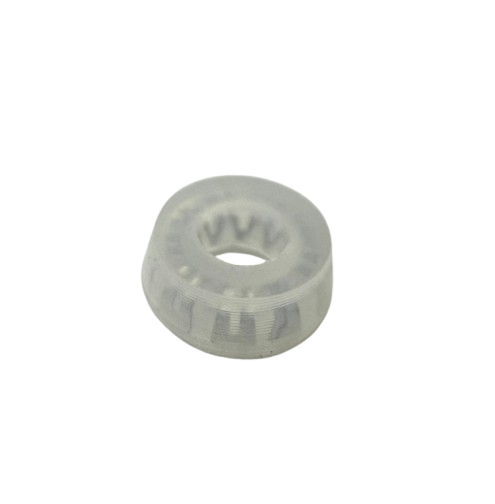

The Graco 111613 U-Cup Packing is a durable seal designed for reciprocating pumps, valves, and cylinders. Its U-shaped profile ensures reliable dynamic sealing and prevents fluid leakage under pressure.

Key Features

• U-shaped design for superior dynamic sealing
• OEM part ensuring proper fit and performance
• Resistant to wear and chemical exposure
• Used in various Graco pump, valve, and cylinder assemblies

Technical Specifications

Installation & Maintenance

Install the Graco 111613 U-Cup Packing in the designated groove of the pump, cylinder, or valve. Ensure correct orientation of the U-shaped lip to maintain proper sealing. Inspect regularly for wear or damage and replace as necessary to prevent fluid leaks.
