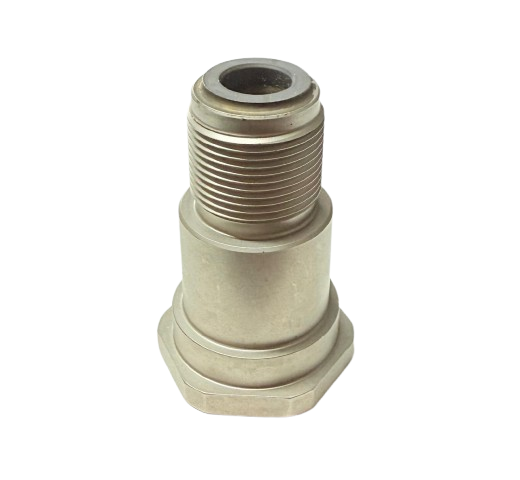

Graco 236565 pump piston valve

The Graco 236565 Pump Piston Valve is a precision replacement part designed for GM 7000 sprayers using pump model 236533. It ensures consistent pressure and reliable fluid flow within the pump.

Direct OEM replacement for 236565 / 236-565
Fits GM 7000 fluid section (pump 236533)
Restores smooth spray performance and pressure stability
Durable construction for long service life

Retail Price: $141.5

You save: $11.74 (8.30%)

Our Price: $129.76

Based on 0 reviews

Description

Overview & Key Benefits

Compatible Machines

Use this list to quickly confirm fitment before ordering:

Graco GM 7000 airless sprayers (with fluid section / pump 236533)
Any unit that uses the GM 7000 fluid section (pump model 236533)

Product Summary

The Graco 236565 Pump Piston Valve is the precision valve that controls fluid flow inside the pump’s displacement section. Designed for the GM 7000 fluid section (pump 236533), it maintains consistent priming, pressure, and spray pattern while reducing performance drift caused by wear.

Why Choose the 236565 Piston Valve?

Engineered fit for GM 7000 fluid sections (pump 236533).
Helps restore proper check action, pressure stability, and smooth spraying.
Supports longer packing life by maintaining correct valve seating and flow.
Direct, drop-in replacement for Graco 236565 (no modifications required).

Fitment & Specs

Part Number	236565
Item Name	Graco 236565 Pump Piston Valve
Pump / Fluid Section	GM 7000 (pump 236533)
Machine Family	Graco GM 7000 airless sprayers
Replaces	236-565 (dash format)
What’s Included	1 × piston valve assembly (use with existing compatible pump hardware)
Typical Symptoms Indicating Replacement	Poor priming, pulsing pressure, inconsistent spray fan, or loss of check action

Installation Notes

Depressurize the system and follow all safety procedures before service.
Note the orientation of the old valve and seating surfaces; install the new valve in the same orientation.
Inspect packings and seats while open—replace worn parts together for best results.
After reassembly, prime with compatible fluid and check for leaks and smooth pressure build.
