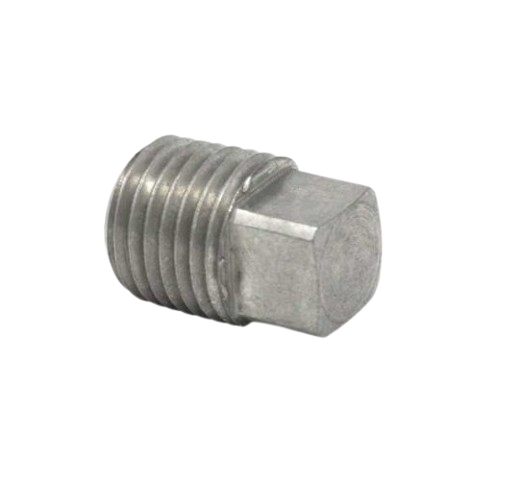

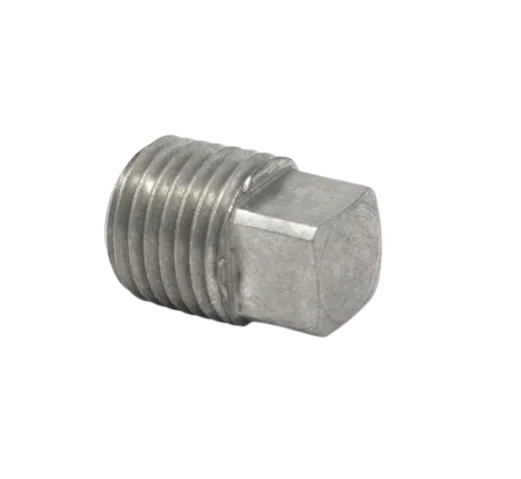

Graco 111697 Pipe Plug

Graco 111697 Pipe Plug – Fitment & Details

Compatible Machines

• Graco finishing equipment and airless sprayers listed in Manual 310726 where part 111697 PLUG, pipe appears in assembly diagram. :contentReference[oaicite:0]{index=0}
• Graco fluid‑filter and outlet systems where part 111697 PLUG; 1/4 NPT is specified. :contentReference[oaicite:1]{index=1}
• Other Graco machines using ¼″ NPT pipe plug part 111697 for sealing unused ports or bypass loops.

Product Overview

The Graco 111697 Pipe Plug is a precision‑engineered part designed to seal unused fluid or air ports in Graco equipment. Featuring a ¼″ NPT male fitting, this plug ensures leak‑free performance in high‑pressure spray systems and fluid manifolds.

Key Features

• ¼″ NPT male pipe plug for secure sealing
• Corrosion‑resistant finish for durability in fluid environments
• OEM part ensures exact fit in Graco assemblies
• Used to block unwanted ports or bypass paths in fluid/air systems

Technical Specifications

Installation & Maintenance

When installing the Graco 111697 Pipe Plug, ensure the port threads are clean and undamaged. Apply appropriate thread sealant if required, then torque the plug to the manufacturer’s specified value to ensure leak‑free sealing. Inspect periodically for corrosion or looseness, and replace if necessary.

Frequently Asked Questions
