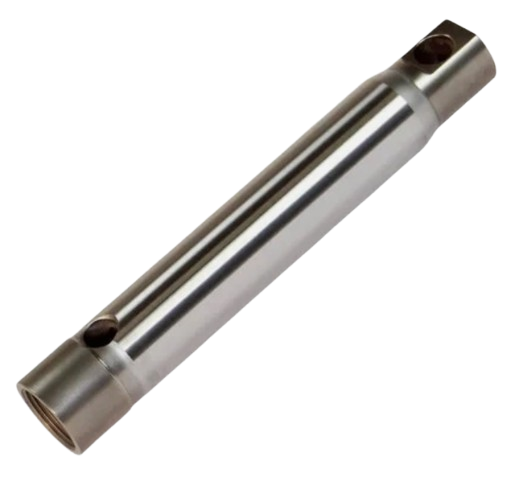

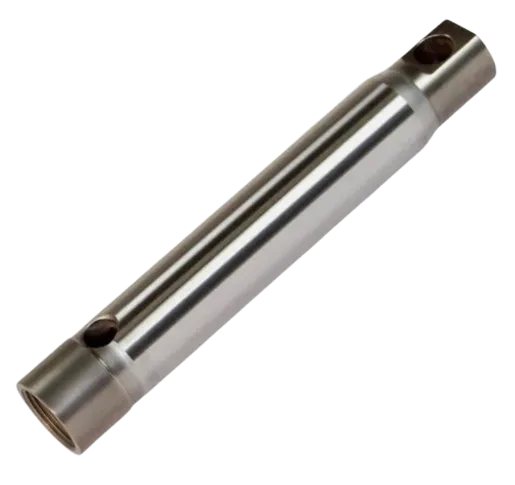

Graco 236567 Piston Rod
$489.60
$680.00
Save 28%
In Stock
The Graco 236567 Piston Rod is a genuine OEM replacement designed to restore precision and durability in your Graco sprayer’s pump assembly. Ideal for maintaining consistent spray performance.
- Part Number: 236567
- Replaces: 236535
- Fits: Graco GM 7000
- Type: Replacement Rod Kit
- Brand: Genuine Graco OEM Part
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Compatibility for Graco 236567 Piston Rod
Compatible Machines
This OEM rod is engineered for reliable performance. Confirm your model before ordering.
- Graco GM 7000
Key Highlights
- OEM Quality: Genuine Graco 236567 Piston Rod for precise fit and durability.
- Direct Replacement: Noted as a replacement for part 236535 (verify in your parts manual).
- Purpose-Built: Restores pump performance by replacing a worn or damaged piston rod.
- Maintenance-Friendly: Ideal during pump overhauls to prevent premature wear and downtime.
Part Details
| Part Number | 236567 |
|---|---|
| Item Name | Piston Rod (Kit, Replacement Rod) |
| Replaces / Notes | Listed as direct replacement for 236535 (confirm against your specific model manual). |
| OEM / Brand | Graco Genuine Part |
| Primary Fit | GM 7000 |
| UPC / GTIN | 633955352186 |
Product Overview
The Graco 236567 Piston Rod restores pumping efficiency and sealing consistency by replacing a worn, bent, or damaged rod in your sprayer’s pump assembly. Always consult your sprayer’s parts list to ensure correct selection.
Installation & Use Tips
- Depressurize the sprayer and follow all safety procedures before service.
- Inspect packings, seats, and piston components; replace as needed during the same service.
- Torque fasteners to spec and perform a leak/pressure test after reassembly.
- Use compatible lubricants and filters to extend service intervals.
Frequently Asked Questions
Current fit information confirms GM 7000. If you have another model, check its parts manual; only install if 236567 is explicitly listed for your sprayer.
It is noted as a direct replacement for 236535. Always verify against your exact model & serial in the official parts breakdown before purchasing.
Inspect piston/packings, seats, lock nuts, and the pump cylinder. Many techs replace wear items together to avoid repeat downtime.
Look up your sprayer’s illustrated parts list (IPL) and search for 236567. If it appears for your exact model, you’re good to go.
After reassembly, prime with clean solvent or compatible fluid, check for leaks, and run at low pressure before returning to normal operating pressure.
