Compatible Machines & Sprayers
- Graco HVLP Edge II Plus Spray Guns – Repair packing/needle components for proper sealing and operation
- Graco HVLP Edge II Spray Guns – Kit fits packing and seal repair applications to restore performance
- Graco HVLP Edge Spray Guns – Applicable on certain newer edge models when specified in manual parts list

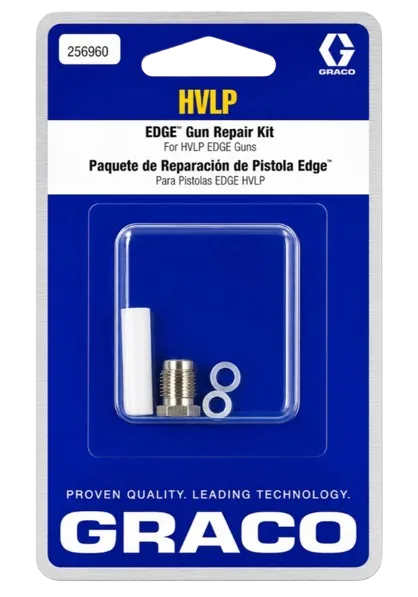

Graco 256960 GB Kit – Repair HVLP Gun
The Graco 256960 Repair HVLP Gun Kit is an OEM repair packing kit designed to restore and maintain the fluid needle packing system on compatible Graco HVLP spray guns. It helps ensure proper seal integrity and smooth spray operation for consistent performance.
Key Features
- Packing & U‑Cup Components – Includes u‑cup spreader, packing, spacer, and nut for rebuild
- Designed for HVLP Guns – Ideal for repairing fluid needle seals in Edge II and Edge II Plus models
- Genuine Graco OEM part ensures proper fit and long service life
- Helps maintain consistent spray performance by restoring seal integrity
Product Specifications
| Part Number | 256960 |
| Product Type | Repair / Packing Kit for HVLP Gun |
| Compatible With | HVLP Edge II Plus, Edge II (newer models) |
| Includes | U‑cup spreader, u‑cup packing, spacer, nut |
| OEM Part | Yes – Genuine Graco accessory |
Why This Kit Matters
Over time, the packing and seals in an HVLP spray gun can wear or lose effectiveness, leading to leaks, improper atomization, or inconsistent spray patterns. The 256960 repair kit restores the fluid needle packing system to proper condition, improving sealing and extending the usable life of your spray gun.
Frequently Asked Questions
The kit includes u‑cup spreader, u‑cup packing, packing spacer, and nut head to repair or replace worn seals in compatible HVLP guns.
It is designed for use with newer Graco HVLP Edge II and Edge II Plus spray guns; verify your exact model before installation for correct fitment.
Replace packing and seal components when spray performance declines or leaks occur; regular maintenance prolongs gun life.
