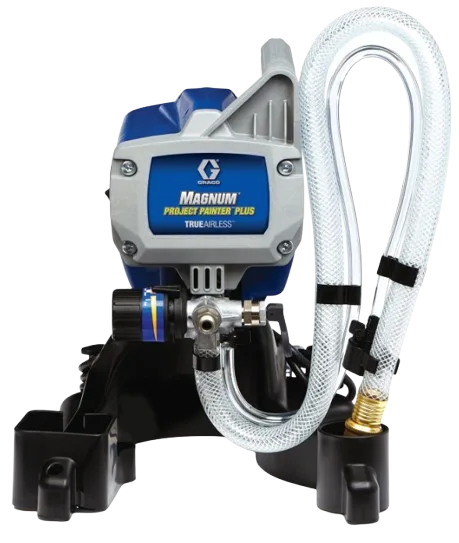

Graco 257025 Sprayer, Project Painter Plus

The Graco 257025 Project Painter Plus is a compact and reliable airless paint sprayer ideal for DIY projects around the home. It offers excellent finish quality and quick setup.

Max Pressure: 2,800 PSI
Flow Rate: 0.24 GPM
Tip Size: Up to 0.015 in
Includes 25 ft DuraFlex hose & SG2 spray gun
Direct siphon from 1–5 gallon containers

Retail Price: $480

You save: $211 (43.96%)

Our Price: $269

Based on 0 reviews

Description

Overview & Key Details for Graco 257025 Sprayer, Project Painter Plus

Compatible Machines

This product is a complete airless sprayer (a machine itself) and does not install into other units. If you’re seeking fitment for accessories/parts to use with this model, see the sections below.

Standalone sprayer — does not “fit” any host machines.

Key Specifications

Model	Graco 257025 Sprayer, Project Painter Plus
Series / Type	Magnum DIY • TrueAirless stand (stationary) unit
Max Working Pressure	Up to 2,800 psi
Max Flow Rate	Up to 0.24 gpm (≈ 0.91 L/min)
Max Tip Size	Up to 0.015 in (commonly supplied with TrueAirless 515 tip)
Hose	1/4" x 25 ft included; supports up to ~50 ft total
Fluid Outlet	1/4" NPSM
Power	120 V AC, corded
Material Pickup	Direct siphon from 1–5 gallon containers
Typical Applications	Walls, ceilings, doors/trim, fences, decks, sheds

What’s in the Box (typical kit)

SG2 spray gun with guard
TrueAirless 515 tip
1/4" x 25 ft DuraFlex hose
Pump Armor (storage fluid) & quick start guide/manual

Compatible Accessories for Project Painter Plus

TrueAirless tips & RAC tip guards (≤ 0.015 in)
1/4" NPSM airless hoses (up to ~50 ft total)
Tip extensions/wands designed for TrueAirless/RAC guards
Inline & gun filters compatible with SG2 gun
Cleaning/maintenance items: Pump Armor, flush adapters

Why Choose Graco Project Painter Plus

Direct-from-bucket spraying for faster project completion
Pressure control for stains, primers, and paints
Compact stand design — easy to carry, store, and set up
DIY-friendly priming, spraying, and cleanup

Best For

Room refreshes (walls/ceilings), doors, trim
Fences, decks, patio furniture, sheds
Rental/property maintenance and quick makeovers

Frequently Asked Questions

This model supports TrueAirless tips up to 0.015 in. Many kits include a 515 tip for general-purpose paints. Choose tip size based on coating and desired fan width.

Yes. The siphon tube is designed to draw material directly from 1–5 gallon containers, reducing refills on larger jobs.

The kit typically includes a 25 ft hose. For best performance, keep total length around 50 ft or less on this model.

Use TrueAirless tips & guards (≤ 0.015 in), 1/4" NPSM hoses, compatible tip extensions, and SG2 gun filters. Confirm tip size and hose rating before use.

It’s ideal for DIYers handling small-to-midsize jobs. If you need higher output, longer hoses, or larger tip sizes, consider stepping up to models like the X5/X7 or ProX series.
