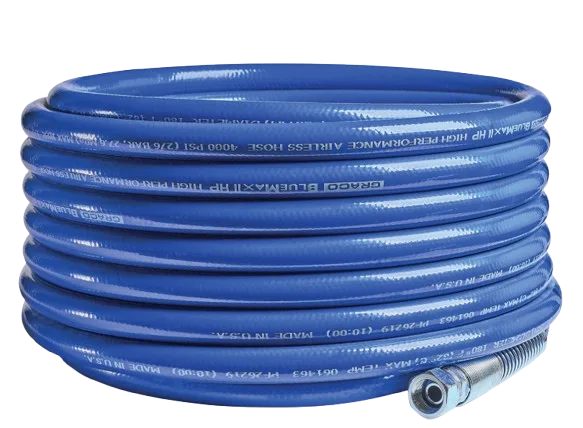

Graco 277253 BlueMax II HP Airless Hose
4/5
(1 review)
$336.72
$460.00
Save 27%
Available to Order
Graco 277253 BlueMax II HP Airless Hose is a heavy-duty, high-pressure hose built for superior performance and flexibility in demanding spray applications. Ideal for large jobs requiring maximum flow and durability.
- Part Number: 277253
- Length: 50 ft
- Diameter: 1/2 inch
- Max Pressure: 4000 PSI
- Type: BlueMax II High Pressure
- Compatible With: Graco Mark V, Mark X, DutyMax, GMAX II, Ultra Max II
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 277253 BlueMax II HP Airless Hose Overview
The Graco 277253 BlueMax II HP Airless Hose is a high-performance, heavy-duty airless paint sprayer hose designed for maximum flow and flexibility. With its ½ inch internal diameter and 50 ft length, it ensures consistent performance for large-scale or industrial coatings applications.
Compatible Machines
This hose is suitable for sprayers supporting ½ inch fluid lines and up to 4,000 PSI working pressure. Common compatible models include:
- Graco Mark V and Mark X Series
- Graco DutyMax and GMAX II Gas Hydraulic Sprayers
- Graco Ultra Max II and Ultra XT Series
- Graco ProContractor and Classic Models (½” hose setup)
- Compatible with other sprayers rated ≤ 4000 PSI and supporting ½” NPSM fittings
Key Features
| Part Number | 277253 |
|---|---|
| Hose Type | BlueMax II HP (High Pressure) |
| Hose Length | 50 feet (15.2 m) |
| Hose Diameter | ½ inch (12.7 mm) |
| Maximum Working Pressure | 4000 PSI (276 bar) |
| Core Type | Conductive core for static dissipation |
| End Guards | Corrosion-resistant spring guards on both ends |
| Weight Advantage | Over 10% lighter than conventional hoses for easier handling |
| Flexibility | Superior flexibility and reduced coil memory for smooth operation |
Applications
Ideal for high-performance airless paint sprayers used in:
- Large-scale commercial or industrial painting
- Exterior coating and heavy material spraying
- Long-distance hose setups requiring steady pressure
Frequently Asked Questions
The Graco 277253 BlueMax II HP Airless Hose has a maximum working pressure of 4,000 PSI, suitable for high-demand airless applications.
It can be used with smaller sprayers if they support ½ inch fittings and operate under 4,000 PSI. However, it’s best suited for large-capacity or industrial-grade sprayers.
BlueMax II HP hoses are designed to be lighter, more flexible, and better at dissipating static electricity than standard hoses. This enhances safety and user comfort.
4
1 review
1
0%
2
0%
3
0%
4
100%
5
0%
L
Laura C.
Had this on hand as a spare and this 277253 BlueMax II HP Airless Hose and it solved the issue we were having right away. Part #277253 matched exactly. Good value for a genuine Graco part.
