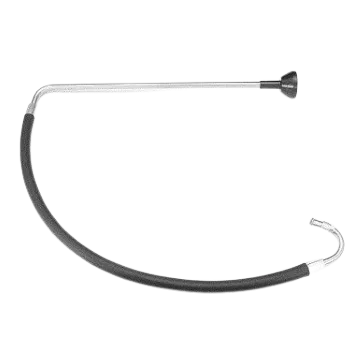

Graco 287654 Kit, Repair, Hose, Drain

Compatible Machines

This Graco 287654 Drain Hose Repair Kit is designed for select Graco airless paint sprayers that use a dedicated drain or return line for pressure relief and fluid return. Using the correct OEM kit helps maintain safe operation and proper fluid control.

• Graco Ultra Max II 390 (select configurations)
• Graco Ultra Max II 490
• Graco Ultra Max II 495
• Graco Ultra Max II 595
• Graco Ultra Max II 650
• Graco GMax Series Sprayers (models with drain/return hose assembly)

Product Description

The Graco 287654 Drain Hose Repair Kit, also referred to as a return line kit, is a genuine replacement solution used to restore the drain hose assembly on compatible Graco airless sprayers. This hose plays a critical role in pressure relief, system flushing, and safe fluid drainage during maintenance or shutdown.

Replacing a worn or leaking drain hose helps prevent paint spills, pressure issues, and downtime on the jobsite. This kit is manufactured to Graco OEM specifications for reliable fit and long-term performance.

Key Features

• OEM drain hose repair solution for Graco sprayers
• Restores proper pressure relief and fluid return
• Helps prevent leaks and messy paint discharge
• Designed for direct replacement with no modification
• Durable construction for professional use

Typical Applications
