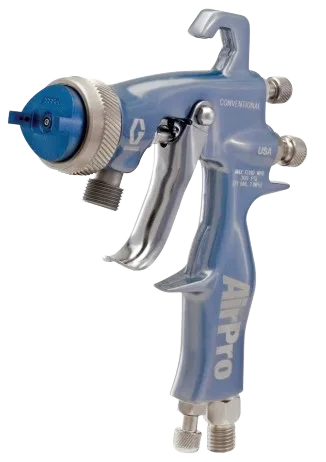

Graco 288931 AirPro Air Spray Pressure Feed Gun .055
$419.99
Available to Order
The Graco 288931 AirPro Pressure Feed Air Spray Gun with .055 in (1.4 mm) nozzle is a conventional air spray gun designed for industrial finishing using external pressure pots or pump systems.
- Conventional air spray, pressure-feed type
- .055 in (1.4 mm) fluid nozzle for medium-viscosity coatings
- 3/8" NPSM fluid inlet, 1/4" NPSM air inlet
- Suitable for enamels, epoxies, urethanes, and waterborne paints
- Used with pressure pots, diaphragm pumps, and transfer pump systems
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Compatible Machines
The Graco 288931 AirPro Air Spray Pressure Feed Gun .055 is designed for use with external pressure-feed coating systems. It does not attach to a single standalone sprayer model; instead, it integrates with the following machine types:
- Graco Pressure Pot Systems (2-qt, 5-qt, 10-qt, 15-gal and similar)
- Graco Pneumatic Diaphragm Pumps with regulated fluid output
- Graco Piston Transfer Pumps for finishing lines
- Industrial Central Paint Circulation Systems
- Air Compressor + Regulated Pressure Feed Manifold Systems
Product Overview
The Graco 288931 is a conventional AirPro air spray pressure-feed gun with a .055 in (1.4 mm) fluid nozzle. It is engineered for high-quality industrial finishing where consistent atomization and operator comfort are required.
| Specification | Details |
|---|---|
| Gun Type | Conventional Air Spray, Pressure Feed |
| Orifice Size | 0.055 in (1.4 mm) |
| Fluid Inlet | 3/8 in NPSM |
| Air Inlet | 1/4 in NPSM |
| Max Air Pressure | 100 psi (6.9 bar) |
| Max Fluid Pressure | 300 psi (20.7 bar) |
| Typical Materials | Enamels, Epoxies, Urethanes, Waterborne Coatings, High-Solids Finishes |
| Application Areas | Industrial metal finishing, automotive components, machinery coating, general manufacturing |
Design & Performance Features
- Lightweight AirPro body for reduced operator fatigue
- Precision air cap for uniform spray pattern
- Two-finger trigger with smooth pull
- Optimized for pressure-fed material delivery from remote tanks or pumps
- Consistent atomization for high-quality surface finish
Frequently Asked Questions
The .055 inch (1.4 mm) orifice controls material flow and atomization. It is suitable for medium-viscosity coatings such as enamels, urethanes, and waterborne paints.
No. This is a conventional air spray gun and requires compressed air for atomization along with a pressure-fed fluid supply.
No. This model is strictly for pressure-feed systems and is not designed for gravity or suction cup operation.
