Graco 243176 Pump Cylinder
$126.75
$169.00
Save 25%
In Stock

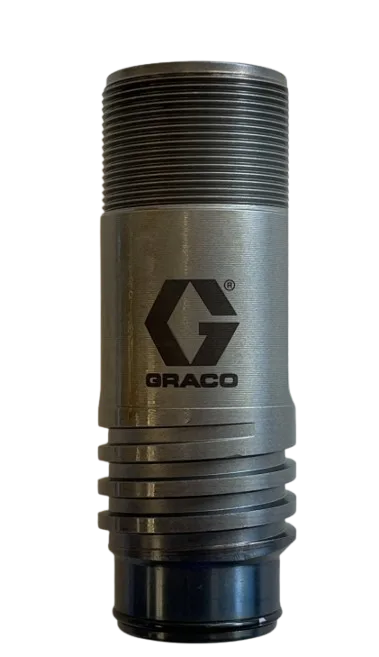

The Graco 243176 Pump Cylinder is a genuine OEM fluid-section component designed for many small and mid-size Graco airless paint sprayers. It ensures smooth piston motion and consistent spray pressure.
- Replaces part numbers 243-176 and 17D481.
- Fits models like 190ES, 210ES, Ultra 395/495/595, and Ultra Max II 490/495/595.
- Ideal for restoring pump performance during rebuild or maintenance.
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Compatibility for Graco 243176 Pump Cylinder
The Graco 243176 Pump Cylinder (also known as 243-176 or OEM equivalent 17D481) is a key component in the fluid section of several Graco airless paint sprayers. It serves as the housing for the piston and packing assembly, ensuring smooth operation and consistent spray pressure.
Compatible Machines
This cylinder is compatible with the following Graco sprayers and series:
- 190ES (2nd series) & 210ES (including LTS variants)
- 390 / 390 Classic / Nova 390
- Ultra 395 / 495 / 595
- Ultra Max II 490 / 495 / 595
- FinishPro 390 / 395
- Ultra Max 695
- ST Pro / STX / 295 ST
- Ultimate Nova 395 / Ultimate SuperNova 495
- GMAX 3400
- LineLazer 3400 & FieldLazer S100
Key Specifications
| Part Number | 243176 (also 243-176 / OEM 17D481) |
|---|---|
| Function | Fluid-section cylinder housing the piston and packing assembly for smooth paint delivery. |
| Approximate Dimensions | Length: 4.1 inches | Diameter: 1.485 inches |
| Material | Precision-machined steel for durability and pressure stability. |
| Use Case | Ideal for maintenance or fluid section rebuilds on compatible Graco sprayers. |
Features & Benefits
- OEM design ensures proper sealing and optimal pump performance.
- Durable build withstands high working pressures and extended use.
- Compatible with multiple Ultra and Ultra Max II sprayer families.
- Perfect fit for standard rebuild and maintenance kits.
Installation & Maintenance Tips
- Replace the pump packings and inspect the piston rod when installing a new cylinder.
- Lubricate the packing nut with Graco TSL to ensure longevity.
- Confirm compatibility by model and series before ordering.
- Use only clean, debris-free components during reassembly to maintain pressure integrity.
Frequently Asked Questions
Yes. These are equivalent references for the same OEM Graco pump cylinder, used interchangeably in parts catalogs.
It is commonly used in Ultra 395, 495, 595, Ultra Max II 490–595, 190ES, and 210ES sprayers, as well as select ST Pro and LineLazer units.
It is recommended to replace the piston rod, packings, and fluid section seals when installing a new cylinder for best results.
Check your Graco model’s parts manual or serial tag. If your sprayer is in the 395–595 or Ultra Max II family, it most likely uses this cylinder.
